Cowboy 8500 Rotary Hole Punching Machine for Leather Belts & Straps

The Cowboy 8500 Rotary Hole Punching Machine is designed for leatherworkers, belt manufacturers, saddlers, and small production businesses that need to create clean, accurately spaced holes repeatedly and efficiently.

Instead of manually measuring, positioning, and punching every hole, the 8500 combines a hand-operated rotary mechanism with an integrated feeding system that automatically advances the material after each punch.

The result is a much more streamlined process for producing belts, straps, and other products requiring repeated hole patterns.

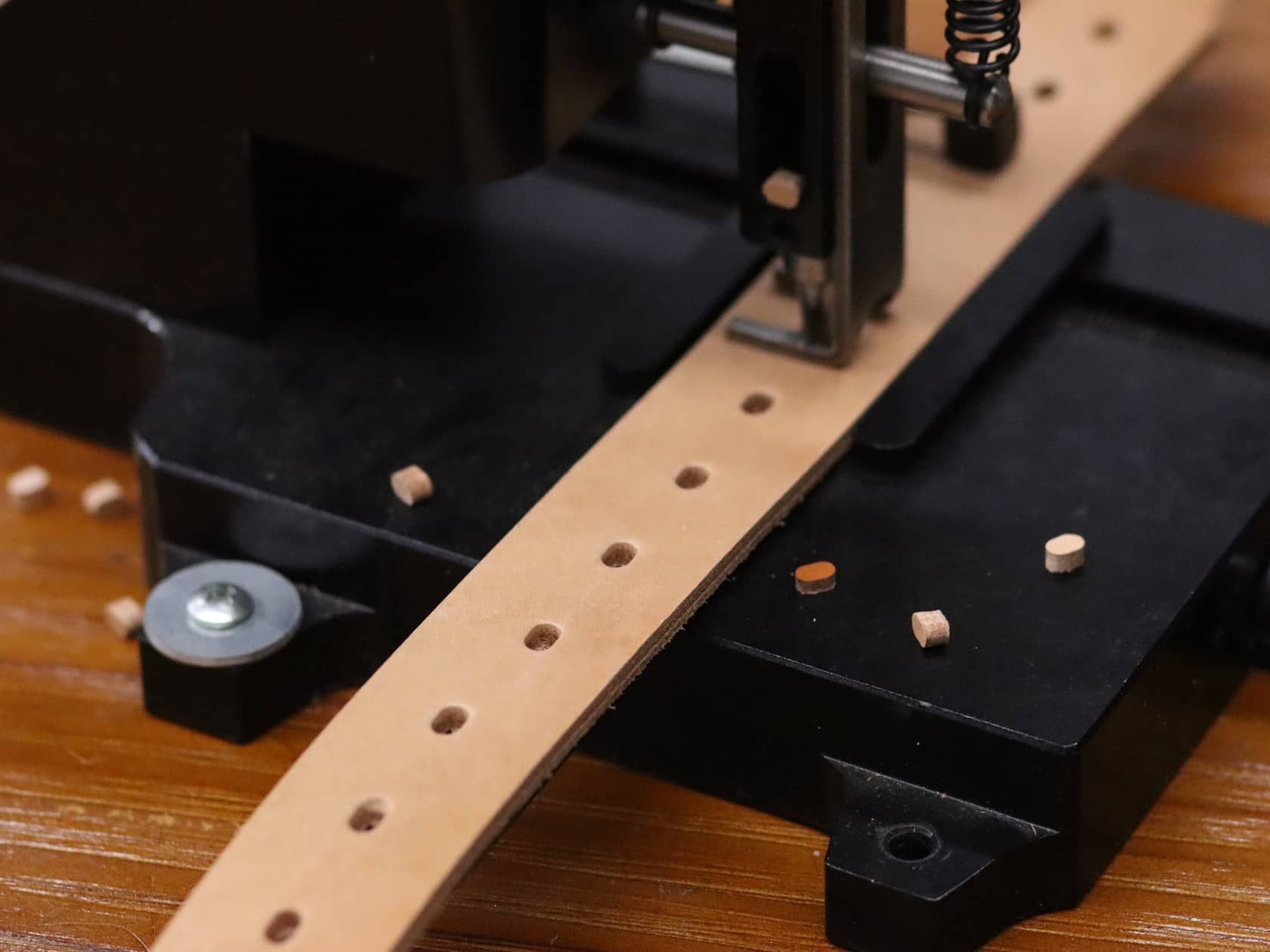

Consistent Hole Punching for Belt & Strap Production

The Cowboy 8500 is built specifically around repeatable hole punching.

Once the desired hole spacing and material position are established, the machine advances the workpiece and creates the next hole according to the selected spacing.

The adjustable punching distance ranges from:

7/16″ (10mm) to 1-3/4″ (45mm).

This provides flexibility for different belt designs, strap layouts, and production requirements.

For businesses producing multiple similar products, this repeatable setup can help reduce the time and manual measuring associated with traditional handheld punching.

Self-Centering Material Guide

The 8500 features a self-centering gauge designed for straps from 1/2″ to 4-1/8″ wide.

This allows the machine to automatically position the material relative to the punching mechanism, making it particularly useful for belt and strap production where holes need to remain consistently positioned along the centerline.

The adjustable guide can accommodate a broad range of strap widths while maintaining a straightforward setup.

Dual Feed System

A dual-feed design helps move the material through the machine during operation.

The operator simply turns the handwheel, and the feeding mechanism advances the workpiece for the next punching cycle.

This reduces the need to manually reposition the strap after every hole and makes the machine particularly useful for repetitive production work.

No Electricity Required

The Cowboy 8500 operates completely through a manual handwheel.

There is no electric motor or power connection required.

The operator turns the handwheel to activate the punching mechanism while the machine feeds the material through the work area.

This mechanical design offers several practical advantages:

• No electricity required
• Simple operation
• Quiet working environment
• Minimal electrical maintenance
• Easy integration into existing workshops

It is particularly useful for leather shops and small manufacturing environments where a simple mechanical production tool is preferred.

Adjustable Hole Spacing

Different belt and strap designs require different hole spacing.

The Cowboy 8500 allows the feeding distance to be adjusted from 7/16″ to 1-3/4″.

This gives the operator control over the spacing between consecutive holes and allows the same machine to be configured for different products.

Whether you’re producing closely spaced belt holes or a wider-spaced pattern, the adjustable feed system provides flexibility without requiring a different machine.

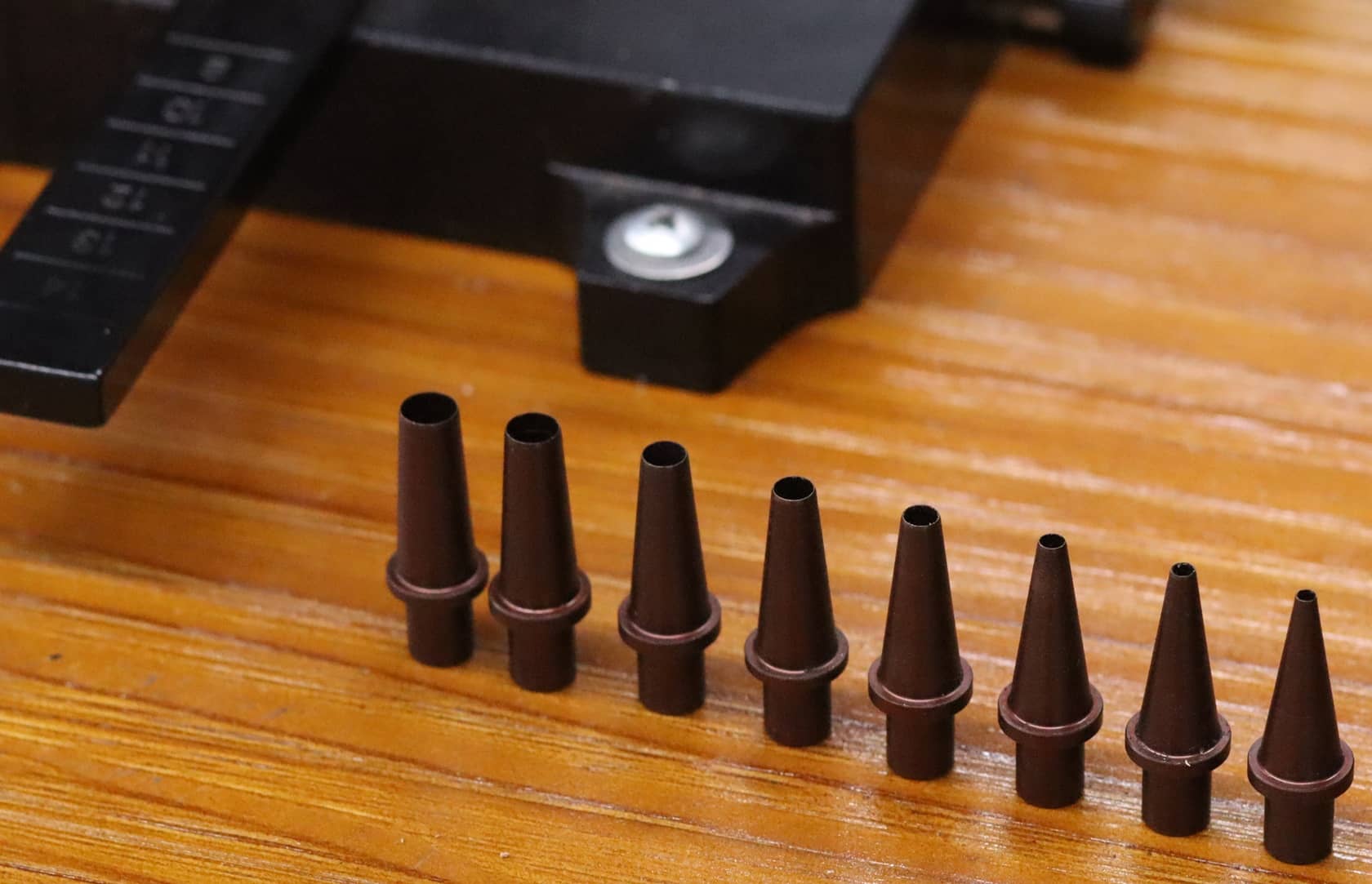

Multiple Punch Sizes

The 8500 includes three standard punch sizes:

• 4mm
• 4.5mm
• 5mm

Additional punch sizes are available as optional accessories:

• 2mm
• 2.5mm
• 3mm
• 5.5mm
• 6mm

An optional 6 × 4mm oval punch is also available for applications requiring an oval hole profile.

This interchangeable punch system allows the machine to adapt to different belt hardware, strap designs, and product requirements.

Adjustable Anvil & Clicker Board

The machine incorporates a clicker-board anvil designed to provide a suitable supporting surface during punching.

The adjustable setup allows the operator to configure the punching action according to the material and application.

A properly adjusted anvil helps support clean punching while reducing unnecessary impact on the machine and tooling.

Center Punching or Offset Punching

The standard configuration is designed for self-centering hole placement.

For applications where holes need to be positioned closer to the edge of a strap, an optional offset guide can be used.

This gives the 8500 additional flexibility for products with non-centered hole patterns.

---

BUILT FOR REPEATABLE PRODUCTION

The Cowboy 8500 is particularly valuable when hole punching is performed repeatedly throughout the day.

Typical applications include:

• Leather belts
• Work belts
• Western belts
• Leather straps
• Bag straps
• Tack straps
• Harness components
• Synthetic straps
• Coated webbing
• Other suitable flexible materials

For a workshop producing dozens or hundreds of similar pieces, a dedicated rotary punching machine can make the process considerably more organized than manually punching each hole individually.

---

KEY FEATURES

• Heavy-duty rotary belt and strap hole punching machine
• Manual handwheel operation
• No electricity required
• Automatic material feeding
• Dual-feed design
• Self-centering gauge
• Accommodates straps from 1/2″ to 4-1/8″ wide
• Adjustable hole spacing from 7/16″ to 1-3/4″
• Standard 4mm, 4.5mm and 5mm punches included
• Optional 2mm, 2.5mm, 3mm, 5.5mm and 6mm punches
• Optional 6 × 4mm oval punch
• Clicker-board punching anvil
• Adjustable punching setup
• Optional offset guide for off-center holes
• High-speed steel (HSS) punch/blade material
• Designed for leather, synthetic materials and coated webbing
• Compact workshop-friendly design

---

TECHNICAL SPECIFICATIONS

---

APPLICATIONS

Leather Belts

• Western belts
• Work belts
• Fashion belts
• Heavy-duty belts
• Custom belts

Leather Straps

• Bag straps
• Tack straps
• Harness components
• Utility straps
• Leather accessories

Synthetic Materials

• Synthetic straps
• Coated webbing
• Suitable flexible materials

Production & Manufacturing

• Repetitive belt punching
• Batch strap production
• Custom hole patterns
• Centered hole punching
• Offset hole punching

---

WHY CHOOSE THE COWBOY 8500?

The Cowboy 8500 Rotary Hole Punching Machine is designed for one thing exceptionally well: making repetitive hole punching faster, more consistent, and easier to manage.

Its hand-operated design keeps the machine simple, while the automatic feed eliminates the need to manually measure and reposition the material after every hole.

The combination of self-centering material guidance, adjustable hole spacing, dual feeding, interchangeable punch sizes, and optional offset punching makes the 8500 adaptable to a wide range of belt and strap products.

  For leatherworkers and small manufacturers who have outgrown handheld punches but don’t necessarily need a fully automated production system, the 8500 provides a practical middle ground.
