Description

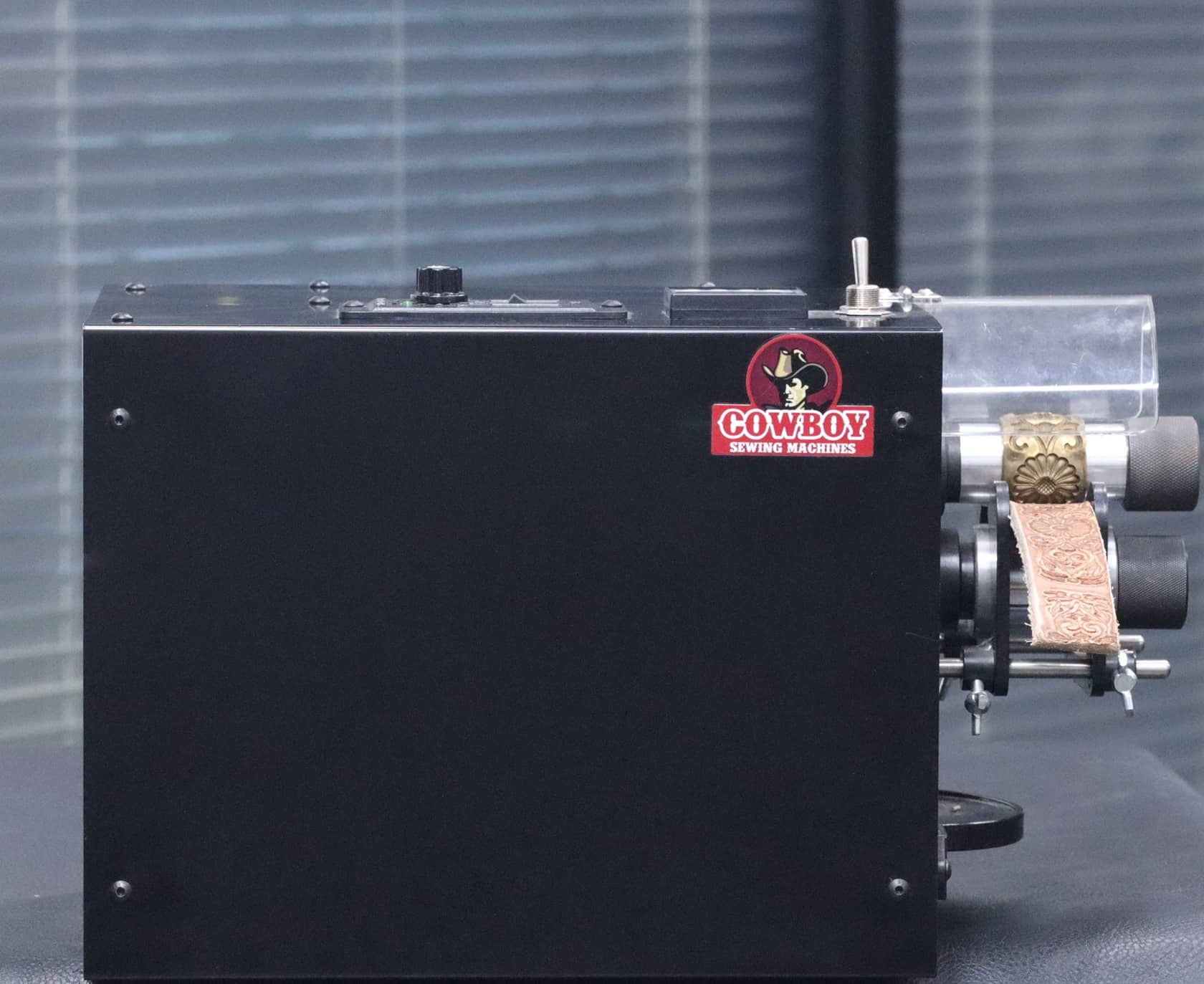

Cowboy 8700PRO Leather Belt Hot Embossing Machine with Heated Roller

Take leather belt and strap finishing to the next level with the Cowboy 8700PRO Leather Belt Hot Embossing Machine.

Designed for professional leatherworkers, belt makers, custom leather businesses, and small-scale manufacturers, the 8700PRO combines controlled heat, mechanical pressure, and motorized material feeding to produce crisp and consistent embossed patterns on suitable vegetable-tanned leather.

As the powered, heated version of the Cowboy 8700 platform, the 8700PRO is designed for users who need greater consistency and production efficiency than a traditional hand-crank embossing machine can provide.

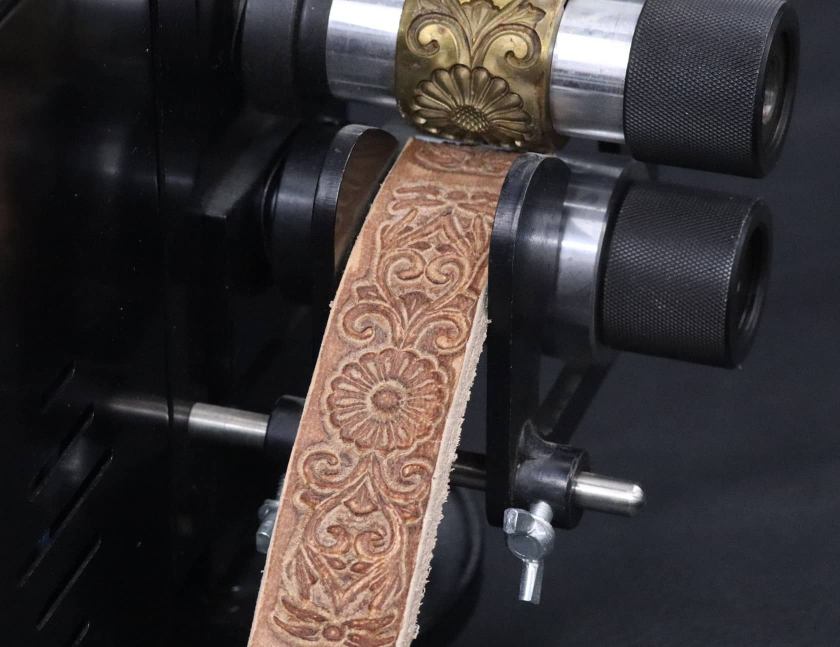

Heated Roller for Defined Leather Embossing

The defining feature of the 8700PRO is its heated brass embossing roller.

The roller can reach a maximum temperature of approximately 140°C, allowing heat and pressure to work together during the embossing process.

This can produce:

• More defined impressions
• Stronger pattern detail
• Consistent decorative markings
• A distinctive heat-burnished appearance

The combination of heat and pressure is particularly useful when creating decorative patterns along leather belts and straps.

Motorized Variable-Speed Feeding

Unlike a manually operated leather embosser, the 8700PRO uses a motor-driven variable-speed feed system.

The operator can control how quickly the leather passes through the embossing roller, helping maintain a more consistent feed rate throughout the strap.

This is particularly useful for longer belt and strap pieces where maintaining an even hand-crank speed can be difficult.

Variable-speed feeding provides greater control when working with different leather thicknesses, designs, and embossing requirements.

Adjustable Embossing Depth

Different leather products require different levels of pressure and roller clearance.

The Cowboy 8700PRO allows the operator to adjust the roller clearance and embossing pressure, providing control over the depth and appearance of the finished pattern.

This makes it easier to configure the machine for different projects, from relatively thin leather straps to heavier belt and saddle leather.

Proper adjustment also allows operators to fine-tune the machine when changing embossing rollers or leather materials.

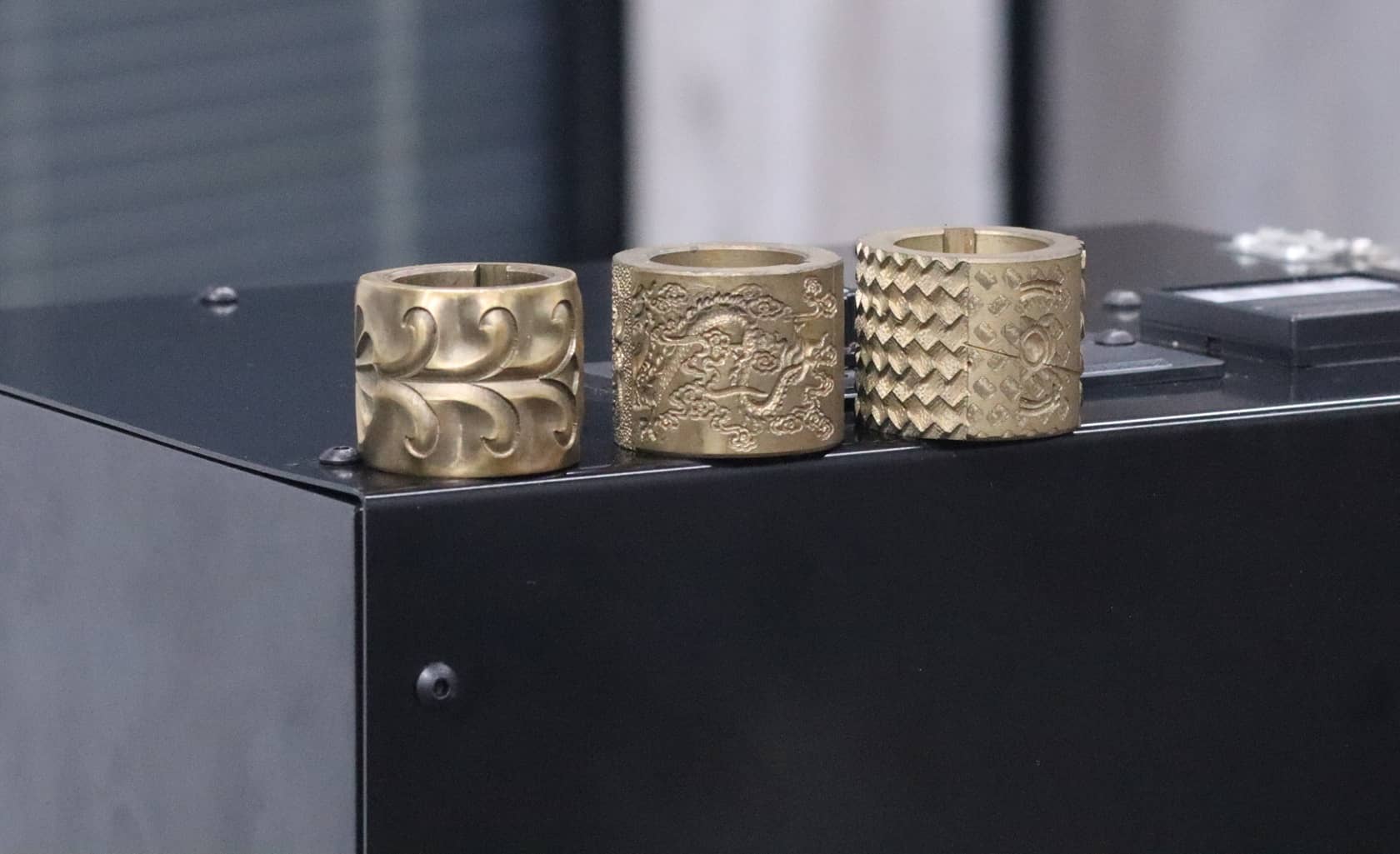

Compatible with Standard Embossing Rollers

The 8700PRO is designed to work with commonly used leather-industry embossing rollers.

The standard roller dimensions are:

• 38mm outer diameter
• 25.5mm inner diameter
• 30mm roller length
• 5 × 3mm keyway

This gives leatherworkers access to a broad range of available roller designs for decorative and functional leather finishing.

Possible designs include:

• Basketweave
• Floral patterns
• Western patterns
• Celtic designs
• Decorative borders
• Geometric patterns
• Zodiac designs
• Logos
• Maker’s marks

Custom Embossing Rollers Available

Need your own design?

Custom leather embossing rollers can be manufactured according to your artwork or design requirements and quantity.

This is particularly valuable for businesses producing branded leather products.

A custom roller can incorporate:

• Company logos
• Brand names
• Maker’s marks
• Original artwork
• Custom patterns
• Product-specific designs

This allows the 8700PRO to become a dedicated branding and decorative finishing machine for your leather products.

More Than a Leather Embosser

The 8700PRO can be configured with suitable roller dies for more than decorative embossing.

Depending on the roller tooling used, the machine can also be utilized for:

• Leather embossing
• Creasing
• Strap finishing
• Certain cutting or trimming operations

This makes the machine a versatile addition to a professional leatherworking workshop.

Designed for Belt & Strap Production

The 8700PRO is particularly suited to leather products that require a repeated design along a continuous length.

Typical applications include:

• Leather belts
• Western belts
• Watch straps
• Leather straps
• Tack and saddlery components
• Decorative leather goods
• Branded leather products
• Custom leather accessories

The motorized feed and heated roller make it especially useful when consistent pattern reproduction is important across multiple pieces.

Compact Benchtop Production Machine

Despite its powered functionality, the Cowboy 8700PRO maintains a compact benchtop format.

This allows professional leatherworkers and smaller manufacturers to add powered hot embossing capability without dedicating large amounts of factory floor space to a full-size industrial machine.

Its compact design makes it suitable for:

• Leathercraft workshops
• Belt-making businesses
• Saddlery shops
• Custom manufacturing
• Small production facilities
• Artisan studios

---

KEY FEATURES

• Professional hot leather embossing machine
• Heated brass embossing roller
• Maximum roller temperature of approximately 140°C
• Motor-driven variable-speed material feed
• Adjustable embossing pressure
• Adjustable roller clearance
• Designed for leather belts and straps
• Compatible with standard industry embossing rollers
• Custom embossing rollers available
• High-quality brass roller construction
• Suitable for embossing and creasing applications
• Compact benchtop design
• Suitable for vegetable-tanned leather and veg-tan hides
• Designed for repeatable decorative leather finishing

---

TECHNICAL SPECIFICATIONS

Important: The Cowboy 8700PRO is designed for vegetable-tanned leather and veg-tan hides and is not intended for soft upholstery leather.

---

APPLICATIONS

Leather Belt Embossing

• Western belts
• Fashion belts
• Work belts
• Custom belts
• Decorative belt patterns
• Belt branding

Leather Strap Embossing

• Watch straps
• Bag straps
• Tack straps
• Decorative straps
• Custom leather straps

Branding & Decoration

• Company logos
• Maker’s marks
• Custom patterns
• Repeating designs
• Decorative borders
• Western and floral designs

Leather Production

• Saddlery
• Custom leather goods
• Small-batch manufacturing
• Artisan leather products
• Branded leather accessories

---

8700 VS 8700PRO

The two machines serve different workshop requirements:

The 8700 is a good choice when manual control and simplicity are the priority. The 8700PRO is better suited to businesses looking for heated embossing and more consistent powered feeding.

---

WHY CHOOSE THE COWBOY 8700PRO?

The Cowboy 8700PRO is designed for leatherworkers who want more consistency and production capability from their embossing process.

The heated brass roller combines controlled temperature with mechanical pressure, while the variable-speed motorized feed helps maintain a consistent movement through the embossing area.

Add adjustable pressure, interchangeable industry-standard rollers, and the ability to manufacture custom embossing rollers, and the 8700PRO becomes a highly adaptable tool for professional belt and strap production.

Its compact benchtop design also makes it practical for businesses that want powered hot embossing without moving to a much larger industrial machine.
