Description

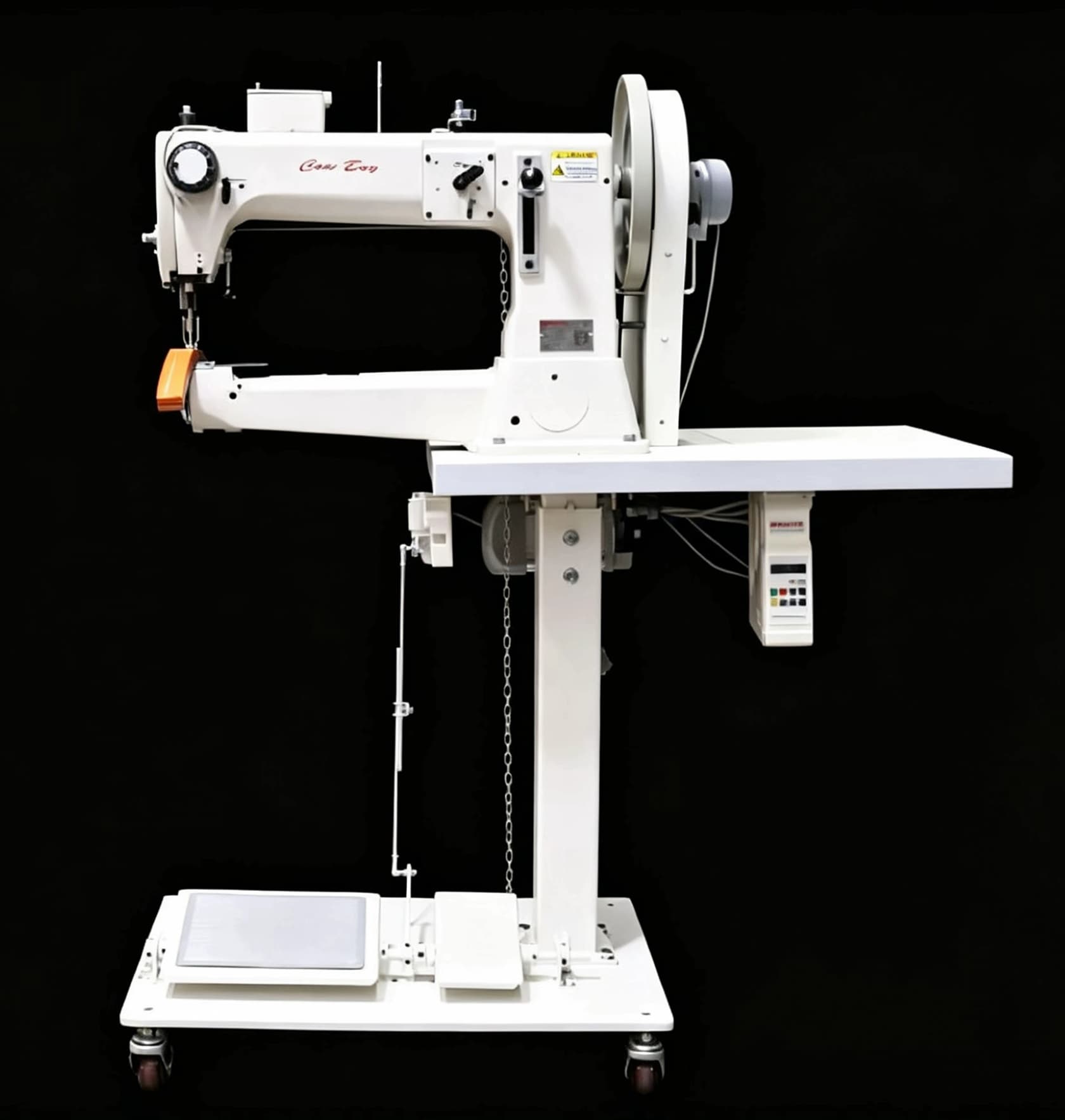

CB4500 Heavy-Duty Cylinder-Bed Leather Sewing Machine
The HighTex CB4500 is a heavy-duty cylinder-bed sewing machine designed for professional leatherwork, saddlery, harness making, upholstery, and other demanding applications involving thick and difficult-to-sew materials.
Its compound-feed mechanism combines the feed dog, walking foot, and needle feed to provide consistent material feeding, while the large-capacity shuttle hook and heavy-thread capability make it suitable for demanding leather sewing applications.
With a maximum sewing thickness of up to 7/8 inch (22 mm) and a low-speed, high-torque servo motor, the CB4500 provides the power and precise speed control required for professional leatherwork.
Key Features

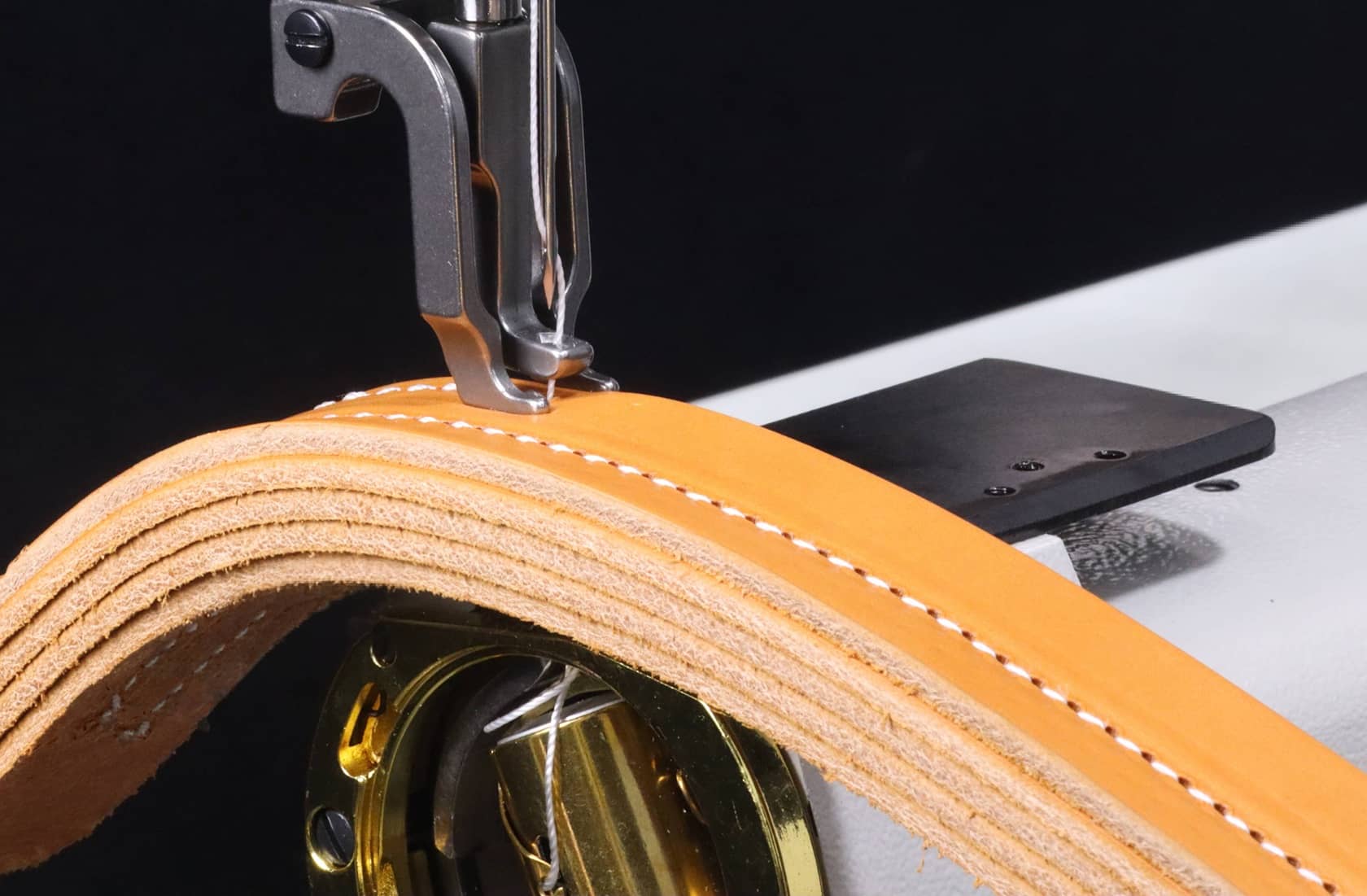

- Compound-feed mechanism — Feed dog, walking foot, and needle feed work together to provide consistent feeding of difficult materials.
- Extra-large shuttle hook and bobbin — Provides increased bobbin capacity and supports heavy thread sizes while reducing bobbin changes.
- High presser-foot lift — Up to 1 1/16 inches (25 mm), allowing clearance for thick and bulky materials.
- Large 12-inch flywheel — Provides additional torque for sewing hard and rigid leather.
- Precise reverse stitching — Designed to return reverse stitches into the same holes for consistent seams.
- Adjustable pedestal stand — Provides additional working clearance and free-arm access around the cylinder bed.
- Heavy-thread capability — Supports thread sizes from #69 through #415.
- High-torque servo motor — 750W / 110V low-speed servo motor provides controlled and precise sewing speed.
Precision Speed Control
The CB4500’s low-speed, high-torque servo motor allows operators to control sewing speed precisely, making it easier to sew thick leather and detailed work stitch by stitch.
A soft-start function helps provide smoother operation when beginning a seam.
Optional controls may include:

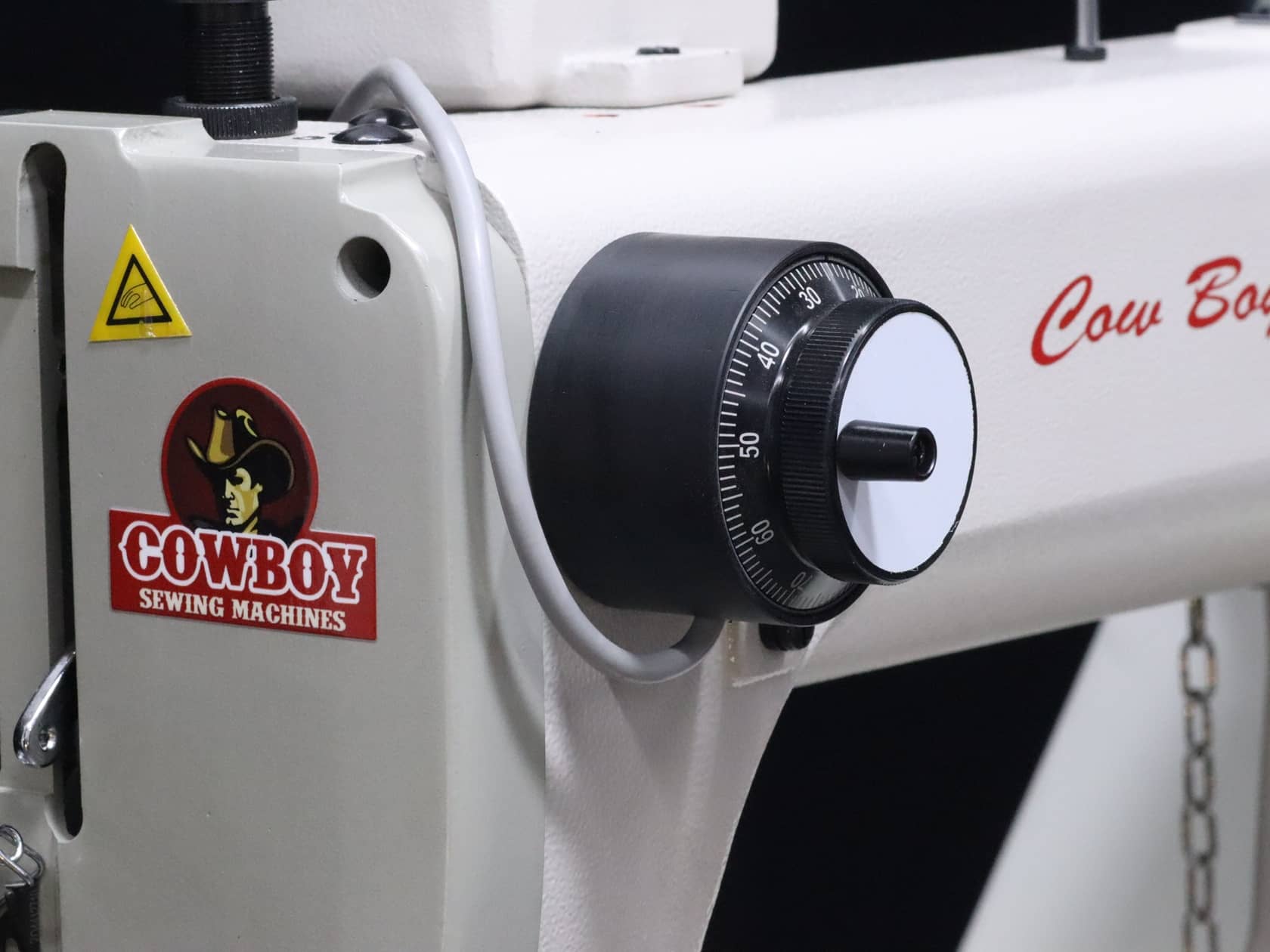

- Jog Dial for precise needle-bar positioning
- Speed Controller for adjustable sewing speed
- Half-Stitch Function for fine stitch positioning

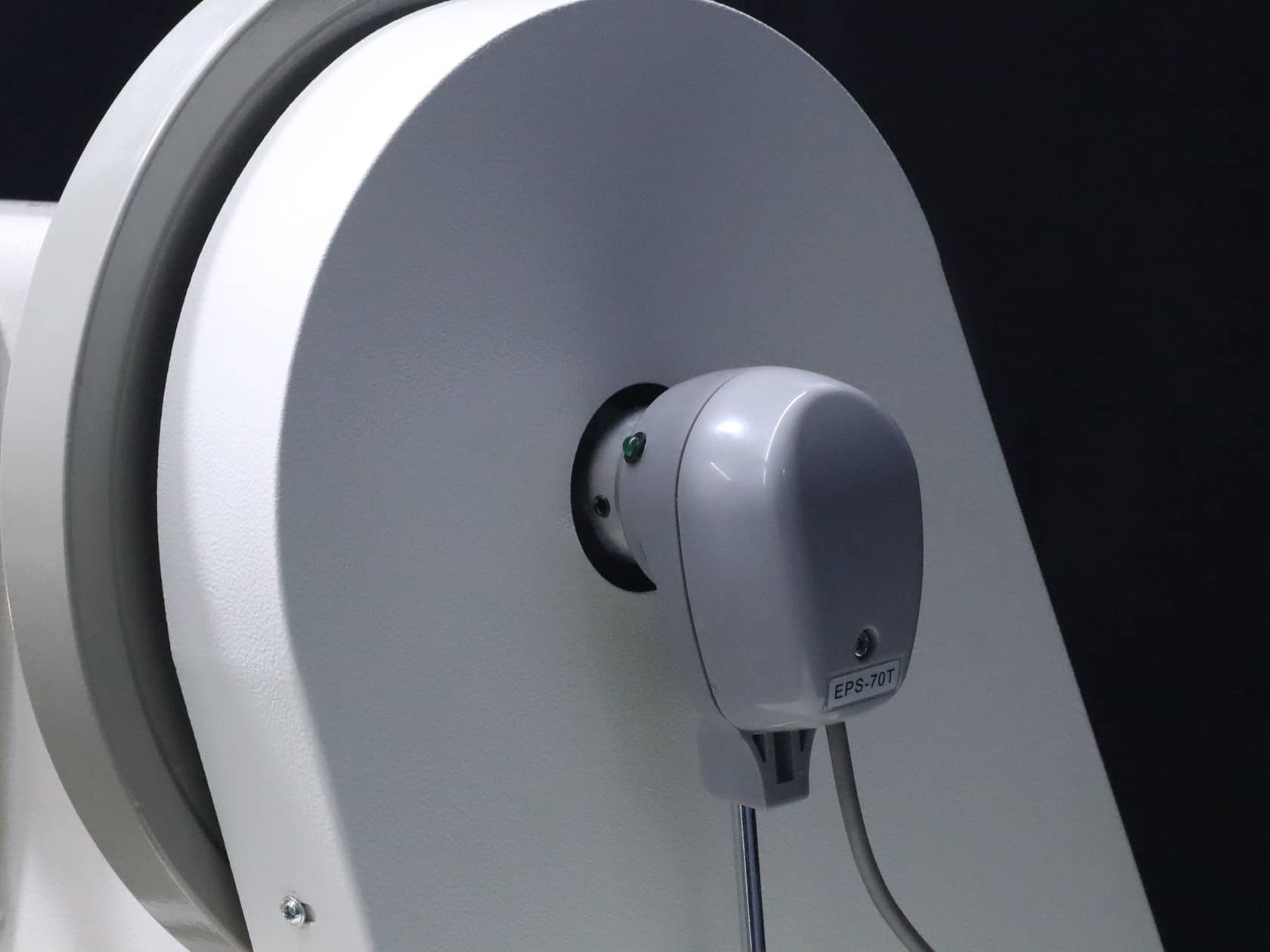

- Needle Positioner for improved needle positioning
Optional controls and accessories may vary by configuration.
Applications
The CB4500 is suitable for a wide range of heavy-material sewing applications, including:
- Saddles and saddlery
- Harnesses and tack
- Heavy leather goods
- Leather bags and accessories
- Upholstery
- Heavy canvas
- Straps and other heavy-material products
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Heavy-Duty Cylinder-Bed Sewing Machine |
| Feed System | Compound Feed |
| Maximum Sewing Speed | 800 RPM |
| Maximum Stitch Length | 3 stitches/inch |
| Maximum Sewn Thickness | Up to 7/8 inch |
| Needle System | 7×3 / 794 |
| Needle Size | #19–#27 |
| Thread Range | #69–#415 |
| Bobbin | Large Capacity, 7/8 × 1 inch |
| Arm Length | 16 1/2 inches |
| Arm Diameter | 3 9/16 inches |
| Maximum Presser-Foot Lift | 1 1/16 inches / 25 mm |
| Reverse | Reverse stitches into same holes |
| Motor | 750W / 110V Low-Speed High-Torque Servo Motor |
Attachments & Accessories
A range of specialized sewing attachments and accessories can be used with the CB4500 for different sewing applications and production requirements.
