Description
Specialized Decorative Sewing for Premium Upholstery

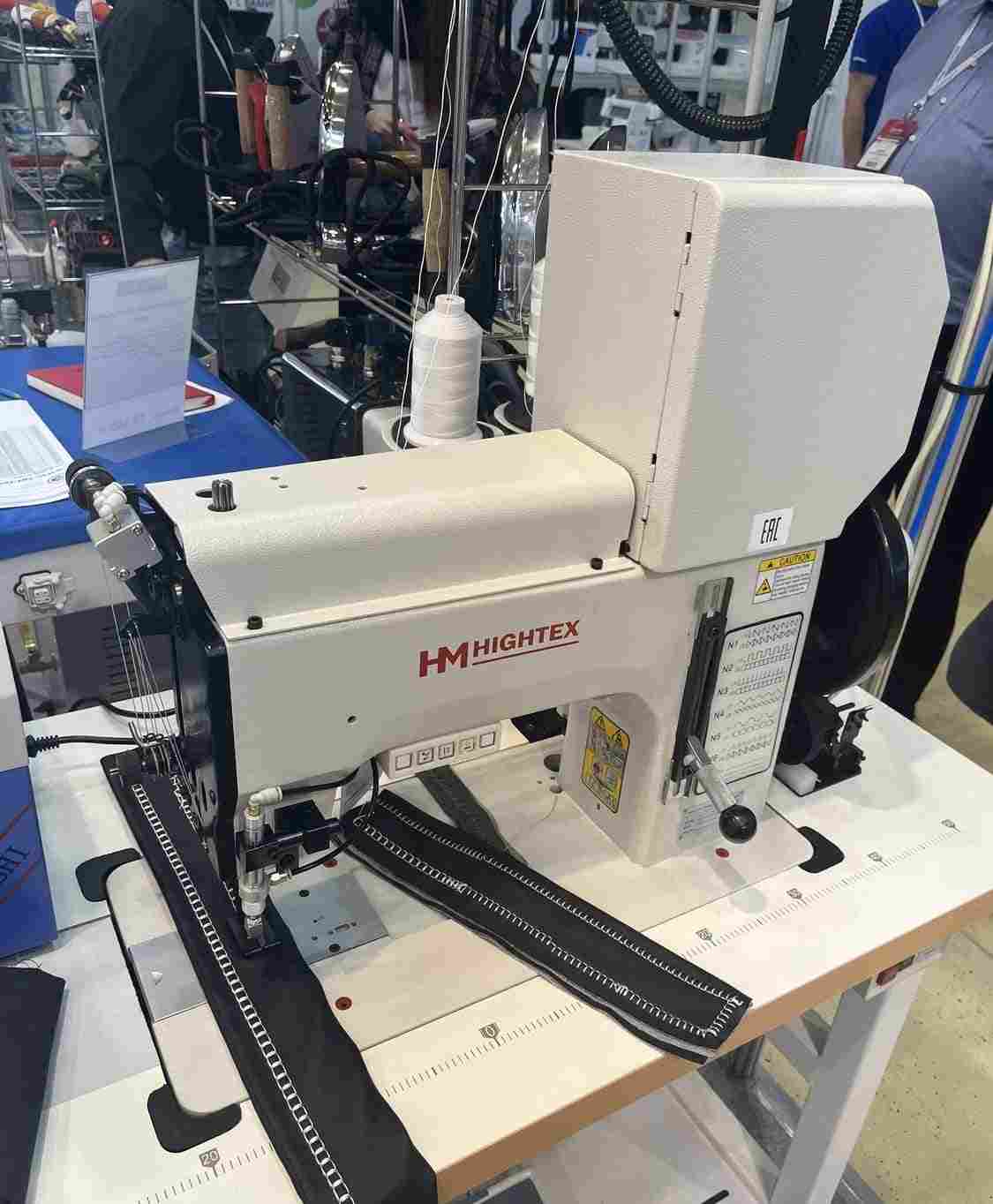

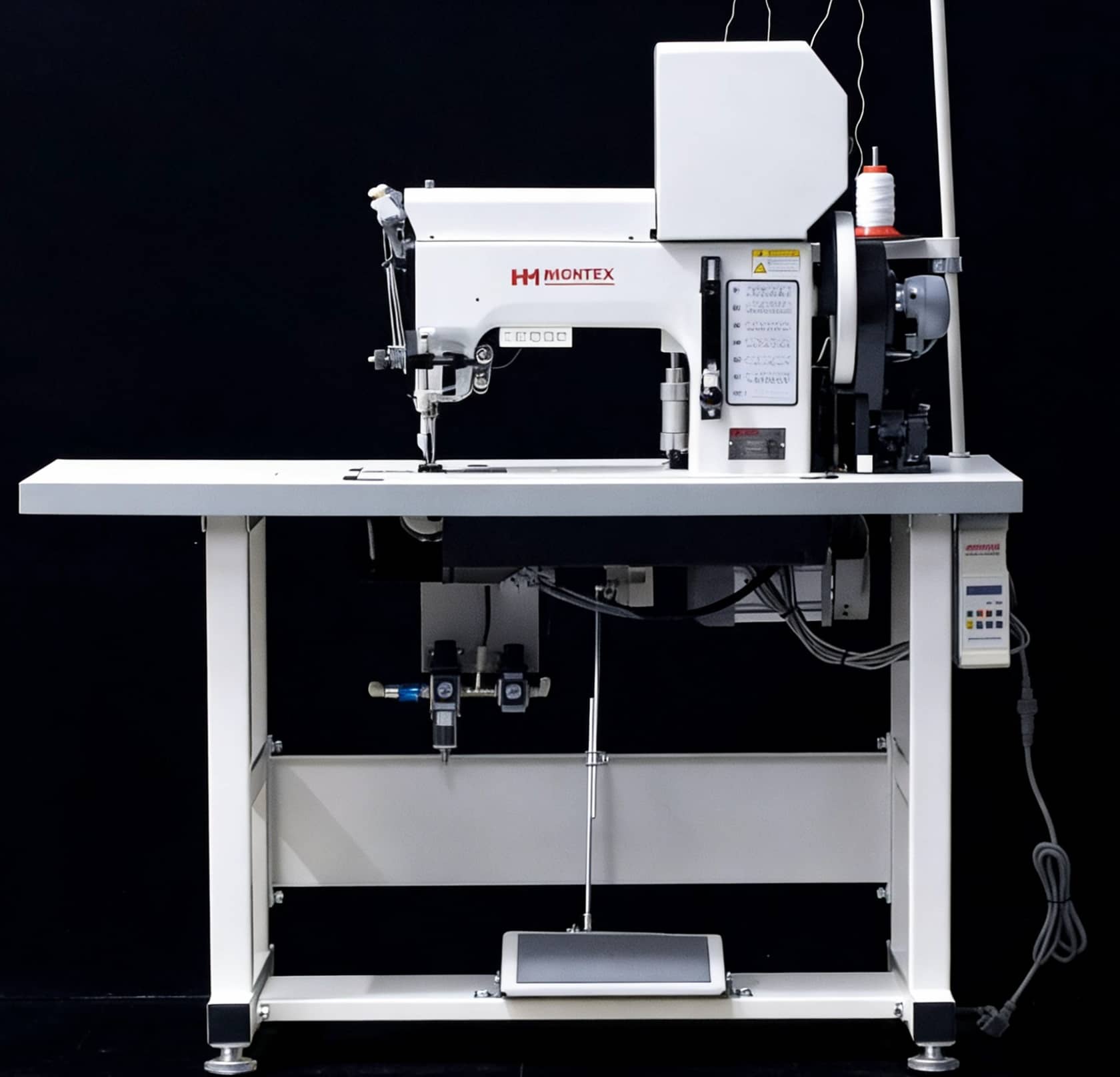

The HighTex 204-104MD is designed for manufacturers who need more than a conventional industrial sewing machine.

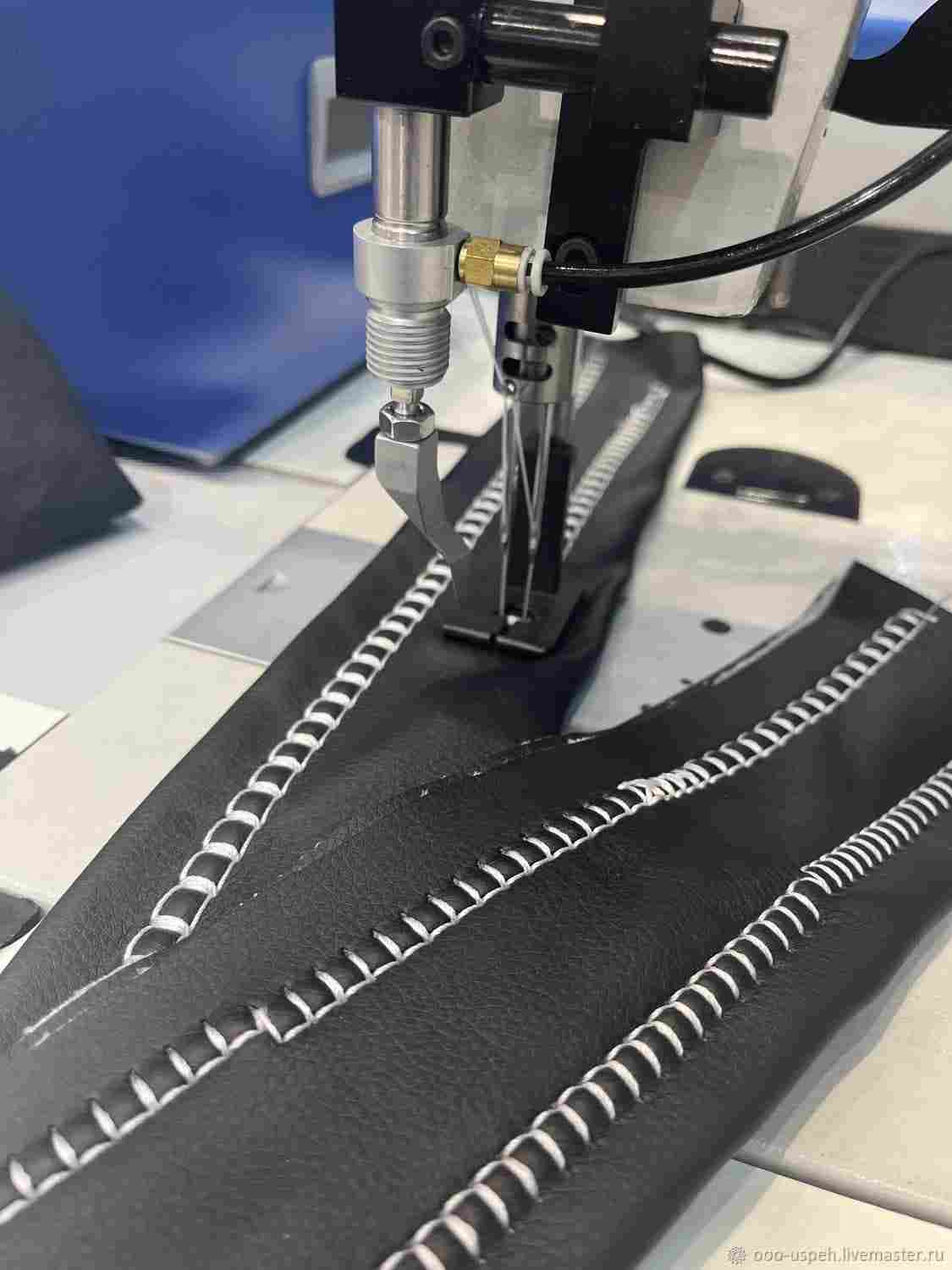

This machine is specifically engineered around decorative and ornamental stitching, allowing manufacturers to create distinctive stitch patterns on leather furniture, automotive interiors, aircraft interiors, and other premium upholstery products.
Its rotating needle-bar technology works with interchangeable cams to produce multiple decorative stitch designs, while the heavy-duty hook and thick-thread capability allow those patterns to be produced with substantial, highly visible thread.
The result is a machine focused on the appearance as well as the structural quality of the finished seam.

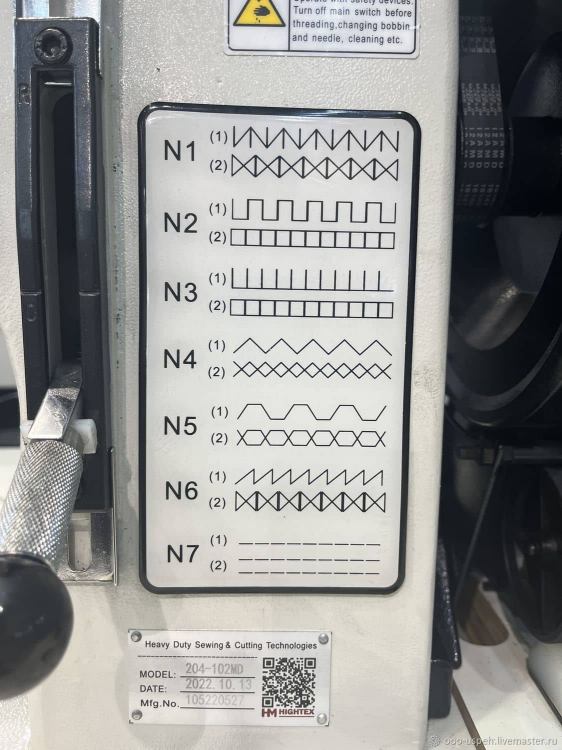

14 Decorative Stitch Patterns
The rotating needle-bar system is one of the defining features of the 204-104MD.
The machine provides:
- 7 single-needle decorative patterns
- 7 double-needle decorative patterns
- 14 total decorative stitch patterns
Pattern selection is accomplished through a changeable cam system, allowing the machine to be configured for different ornamental stitching requirements.
This gives upholstery manufacturers the ability to create repeatable decorative designs across furniture and interior products without relying entirely on manual stitching techniques.
Designed for Premium Leather Furniture
The 204-104MD is particularly suited to products where decorative stitching is an important part of the finished appearance.
Ideal applications include:
- Leather sofas
- Leather couches
- Armchairs
- Premium furniture
- Automotive seats
- Automotive interiors
- Aircraft interiors
- High-end upholstery
- Decorative leather panels
- Custom furniture
The machine’s ability to combine heavy thread with decorative stitch patterns makes it especially useful when stitching is intended to become a visible design element.
Large 204 Barrel Shuttle Hook
Heavy decorative stitching requires more than an ordinary industrial hook.
The 204-104MD uses a 204 Large Barrel Shuttle Hook, providing the capacity necessary for substantial thread sizes and longer sewing cycles.
It supports thread sizes up to:
8/3 — V415 / T-400
or 1mm braided yarn
The large bobbin capacity is especially useful when producing decorative seams over larger upholstery panels, helping reduce interruptions for bobbin replacement.
Heavy-Duty Needle Penetration
The machine is designed to maintain strong needle penetration when working through difficult areas such as:
- Thick leather
- Padded upholstery
- Overlapping seams
- Butted seams
- Cross seams
- Multiple material layers
This is important in upholstery production, where material thickness can change considerably within the same workpiece.
The machine is engineered to maintain controlled stitching through these transitions while supporting consistent decorative seam formation.
Specialized Compensating Roller Presser Foot
The 204-104MD incorporates a specialized compensating roller presser foot designed to assist with material handling during demanding decorative sewing operations.
The roller-style configuration is particularly useful when following:
- Sharp corners
- Curved upholstery sections
- Thick butted seams
- Overlapped seams
- Padded leather assemblies
- Non-padded upholstery materials
This gives the operator greater control when guiding complex upholstery work beneath the needle.
Pneumatic Center Seam Guide
For professional upholstery production, consistent seam placement is critical.
The 204-104MD includes a pneumatic center seam guide to help maintain uniform positioning as the material passes through the sewing area.
This is particularly valuable for decorative seams where even small deviations can become highly visible on finished furniture or interior panels.
Integrated Cord & Piping Capability
The machine is also configured to support cord, piping, and rope insertion into seams.
This makes it particularly useful for upholstery manufacturers producing finished furniture components where decorative piping is integrated directly into the seam.
The ability to combine decorative stitching with corded or piped construction gives manufacturers additional flexibility when producing premium upholstery designs.
Pneumatic & Automatic Production Features
The 204-104MD is equipped with several features designed to improve operator efficiency.
Standard equipment includes:
✓ Pneumatic center seam guide
✓ Automatic presser-foot lift
✓ Automatic thread-tension release
✓ Front tape-guide reel bracket
✓ Pneumatic seam-guiding system
These features help reduce repetitive manual operations and make the machine better suited to professional production environments.
12mm Decorative Stitch Length
The 204-104MD can produce stitch lengths up to 12mm.
Long stitch lengths combined with heavy thread create highly visible decorative seams suitable for premium leather and upholstery products.
The machine can therefore be used for both functional seam construction and prominent ornamental stitching.
Low-Speed Precision Control
The machine is powered by a Kinedyne HM-1000SH low-speed electronic servo motor.
The low-speed configuration is particularly important for decorative sewing because the operator often needs to carefully follow patterns, corners, curves, and material transitions.
Controlled low-speed operation helps the operator focus on:
- Stitch placement
- Decorative patterns
- Curved seams
- Corners
- Piping
- Thick material transitions
- Detailed upholstery work
With a maximum sewing speed of only 400 stitches per minute, the machine is optimized around controlled specialty sewing rather than high-speed conventional production.
Needle Gauge Options
The 204-104MD is available with multiple needle gauge configurations:
8mm — 10mm — 12mm
This allows the spacing between the two needle lines to be selected according to the desired decorative seam appearance and application.
Different gauge configurations provide manufacturers with additional flexibility when producing double-needle ornamental stitching.
Built for Professional Upholstery Production
The 204-104MD is a substantial industrial machine designed for demanding production environments.
With approximately 320mm of working length and 340mm of working height clearance, the machine provides generous space for manipulating larger upholstery components.
Its approximately 170kg gross assembled packing weight also reflects the substantial construction of this specialty industrial sewing system.
Professional Applications
Furniture & Upholstery
The 204-104MD is particularly well suited to:
- Leather sofas
- Couches
- Armchairs
- Furniture upholstery
- Decorative furniture seams
- Premium leather furniture
Automotive Interiors
Suitable for decorative stitching on:
- Automotive seats
- Door panels
- Interior trim
- Leather dashboards
- Custom automotive upholstery
Aircraft & Specialty Interiors
The machine can also be used for specialized interior applications where decorative heavy-thread stitching is required.
Technical Specifications
| Specification | HighTex 204-104MD |
|---|---|
| Machine Type | Heavy-Duty Double-Needle Decorative Stitching Machine |
| Maximum Sewing Speed | 400 stitches/min |
| Maximum Stitch Length | 12mm |
| Needle Gauge Options | 8mm / 10mm / 12mm |
| Needle System | 794 / DY × 3 (#24) |
| Maximum Thread | 8/3 (V415 / T-400) or 1mm braided yarn |
| Maximum Presser Foot Lift | 20mm |
| Presser Foot Alternating | 10mm |
| Pattern Selection | Changeable Cam |
| Hook Type | 204 Large Barrel Shuttle Hook |
| Feeding Mechanism | Drop Feed |
| Decorative Patterns | 14 total — 7 single-needle + 7 double-needle |
| Working Clearance | 320mm L × 340mm H |
| Motor | Kinedyne HM-1000SH Low-Speed Servo |
| Needle Position / Controls | Pneumatic & automatic production features |
| Head/Assembly Packing Size | 1240 × 1380 × 635mm |
| Gross Weight | Approx. 170kg |
Key Features at a Glance
✓ 14 decorative stitch patterns
✓ 7 single-needle patterns
✓ 7 double-needle patterns
✓ Rotating needle-bar technology
✓ Changeable cam pattern system
✓ 204 large barrel shuttle hook
✓ Extra-heavy thread capability
✓ Up to 12mm stitch length
✓ 8mm / 10mm / 12mm needle gauges
✓ 20mm presser-foot lift
✓ Specialized compensating roller presser foot
✓ Pneumatic center seam guide
✓ Automatic presser-foot lift
✓ Automatic thread-tension release
✓ Cord/piping insertion capability
✓ Low-speed 1000W servo motor
✓ Designed for leather, upholstery and interior applications
Why Choose the HighTex 204-104MD?
The 204-104MD fills a very specific role in the HighTex catalogue.
Where a conventional walking-foot machine is primarily concerned with feeding and joining heavy materials, this machine is designed for manufacturers who also need to make the stitching itself part of the product’s visual design.
Its combination of double-needle decorative stitching, rotating needle-bar technology, heavy thread capability, pneumatic controls, and specialized upholstery features makes it particularly valuable for premium furniture and interior manufacturers.
It is an ideal choice when consistent decorative stitching, heavy-thread capability and professional upholstery production are central to the application.
Ordering Information
$9,995.00 — Plus Shipping
The HighTex 204-104MD is a special-order industrial sewing machine.
For availability, estimated lead time, shipping information, configuration details, or to place an order:
