Description

Premium Heavy-Duty Sewing for Demanding Materials

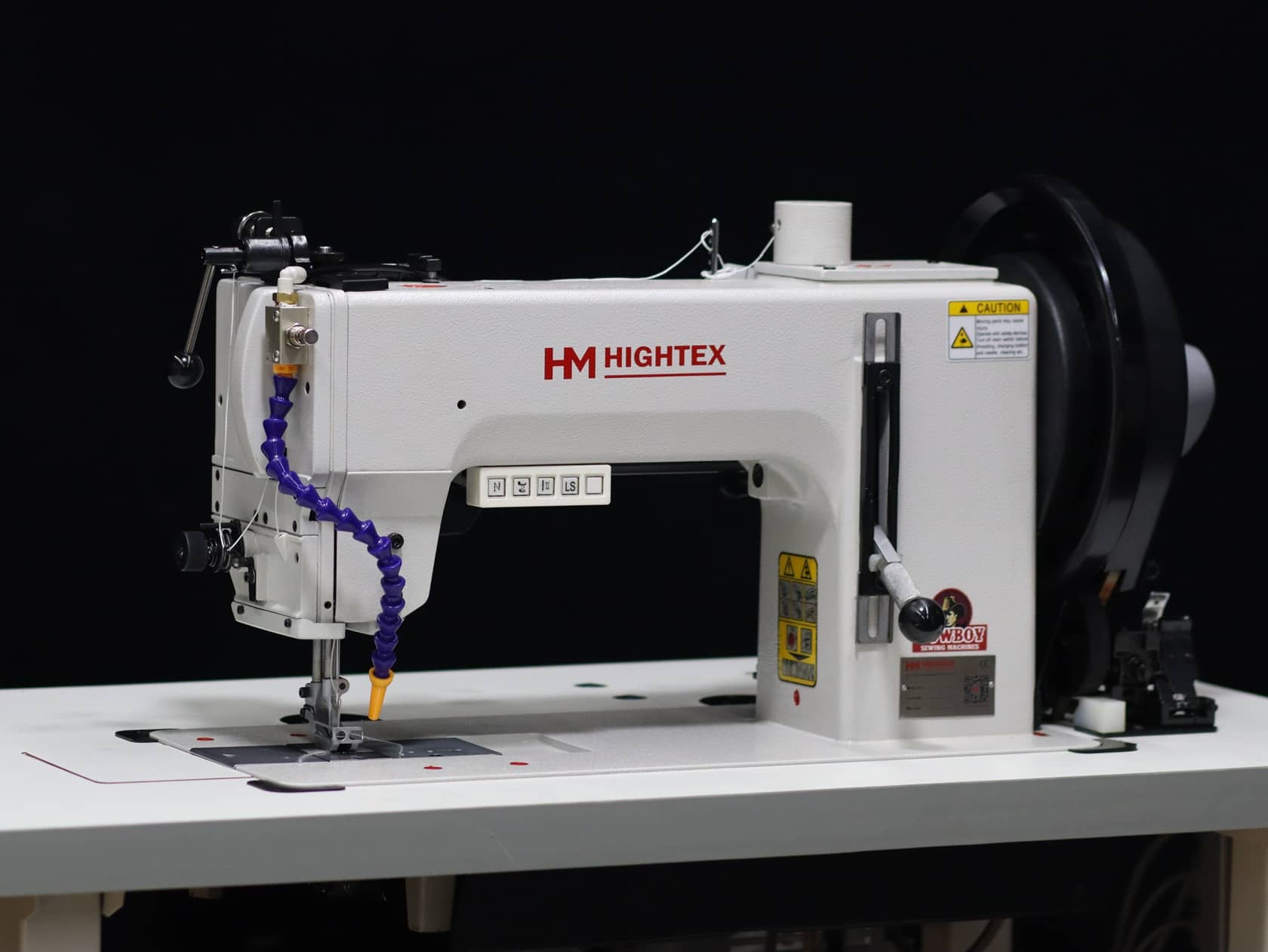

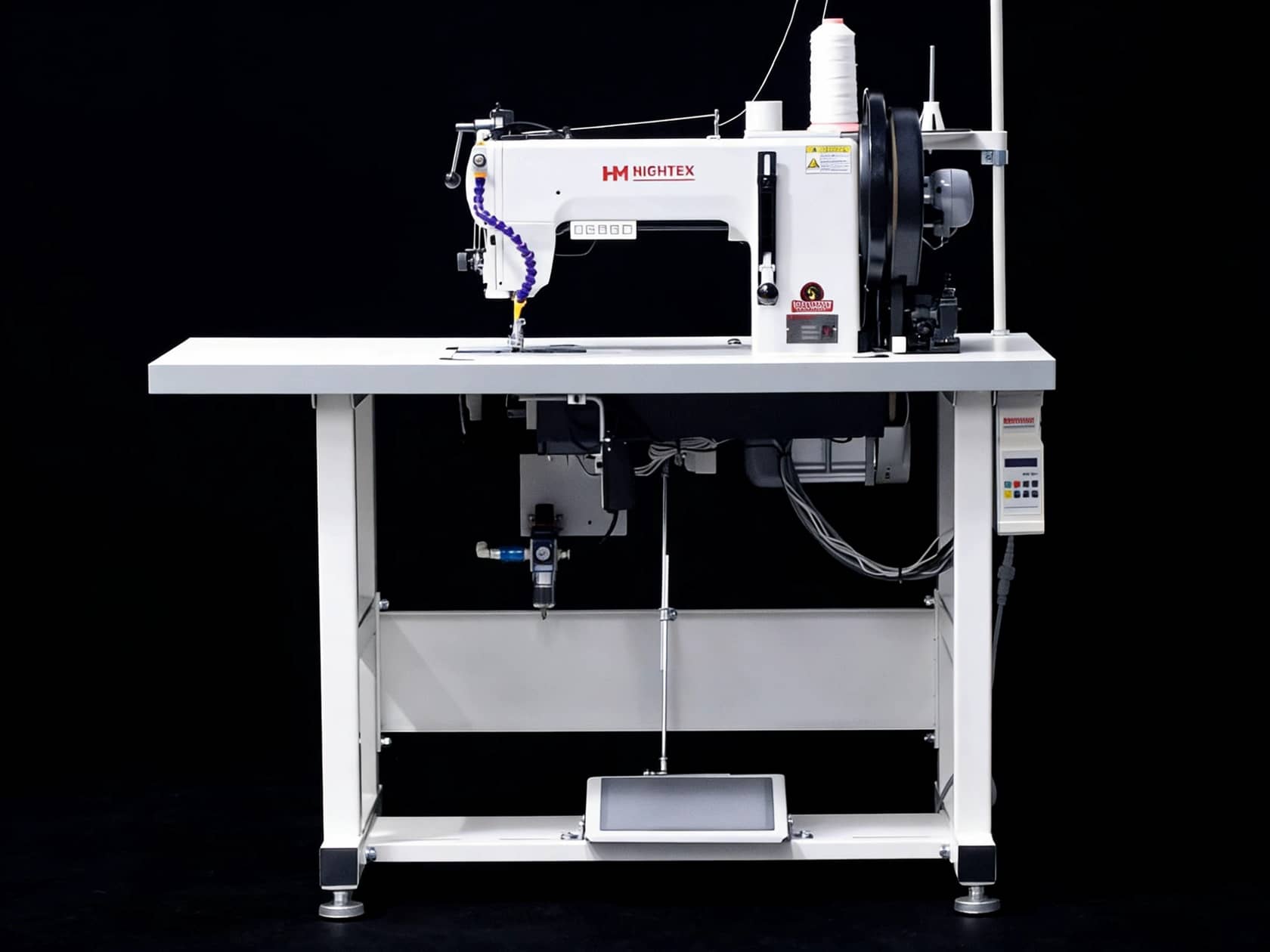

The HighTex 204-370 is built for professional applications where conventional industrial sewing machines reach their limits.

Its combination of a triple-feed walking-foot system, large barrel shuttle hook, substantial presser-foot lift, and controlled servo operation makes it particularly well suited to thick leather, upholstery, webbing, saddlery, technical textiles, and other heavy materials.

The machine is equally capable when the job requires more than simply joining material. Its ability to maintain controlled feeding through bulky sections and overlapping seams makes it a strong choice for topstitching, decorative seams, three-dimensional workpieces, and precision-heavy-material sewing.

---

Built Around a Heavy-Duty Triple-Feed System

The 204-370 uses a synchronized triple-feed mechanism, coordinating the needle, presser foot, and feed system to move heavy materials through the sewing area.

This helps maintain consistent material movement when working with:

• Thick leather
• Upholstery materials
• Webbing and straps
• Heavy canvas
• Saddlery
• Technical textiles
• Multi-layer assemblies
• Bulky seams and overlapping sections

The feeding system is especially valuable when maintaining stitch consistency and seam alignment is important.

---

Large Barrel Shuttle for Heavy Thread

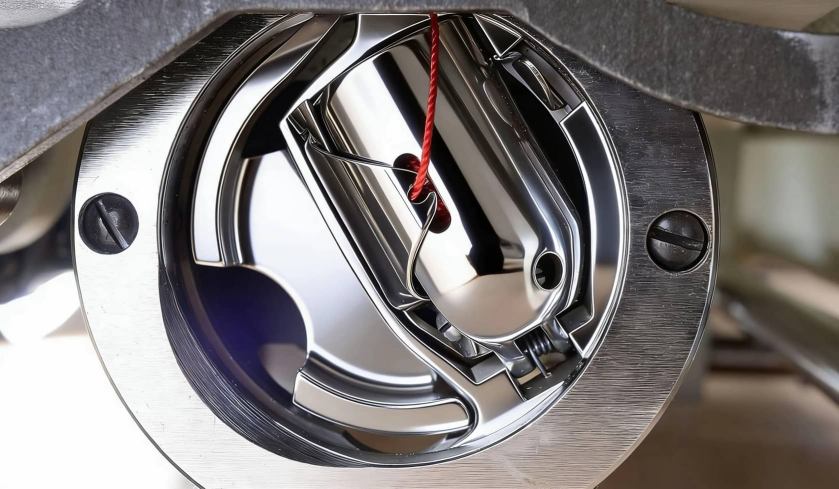

At the heart of the machine is the 204 large barrel shuttle hook, designed for long sewing cycles and high-capacity bobbin operation.

The large shuttle is capable of handling very heavy thread sizes, including:

Up to 8/3 thread — V415 / T-400 — or 1mm braided yarn

This makes the 204-370 particularly appropriate for applications requiring prominent, durable stitching rather than the finer thread commonly used on lighter industrial machines.

---

Excellent Climbing Ability

One of the machine’s key strengths is its ability to negotiate thick spots, multiple layers, and overlapping cross seams.

This is especially useful when sewing leather goods and furniture upholstery, where the machine may need to transition from a relatively thin section into a considerably thicker assembly.

The 204-370 is designed to maintain controlled feeding through these difficult transitions while reducing the likelihood of skipped stitches.

---

20mm Presser-Foot Lift

The presser foot can lift up to 20mm, providing generous clearance for bulky materials and three-dimensional workpieces.

This makes the machine suitable for applications where the material is too thick or cumbersome for conventional flat-bed industrial machines.

The available clearance is particularly useful for:

• Heavy upholstery assemblies
• Thick leather goods
• Saddlery components
• Webbing assemblies
• Layered technical materials
• Bulky three-dimensional products

---

Long Stitch Capability

With a maximum stitch length of 14mm, the 204-370 can produce both strong assembly seams and visually prominent decorative stitching.

The long stitch capability is useful when a project calls for:

• Heavy structural seams
• Decorative topstitching
• Leather goods
• Upholstery
• Webbing products
• Heavy-duty technical applications

---

Controlled Sewing with a High-Torque Servo

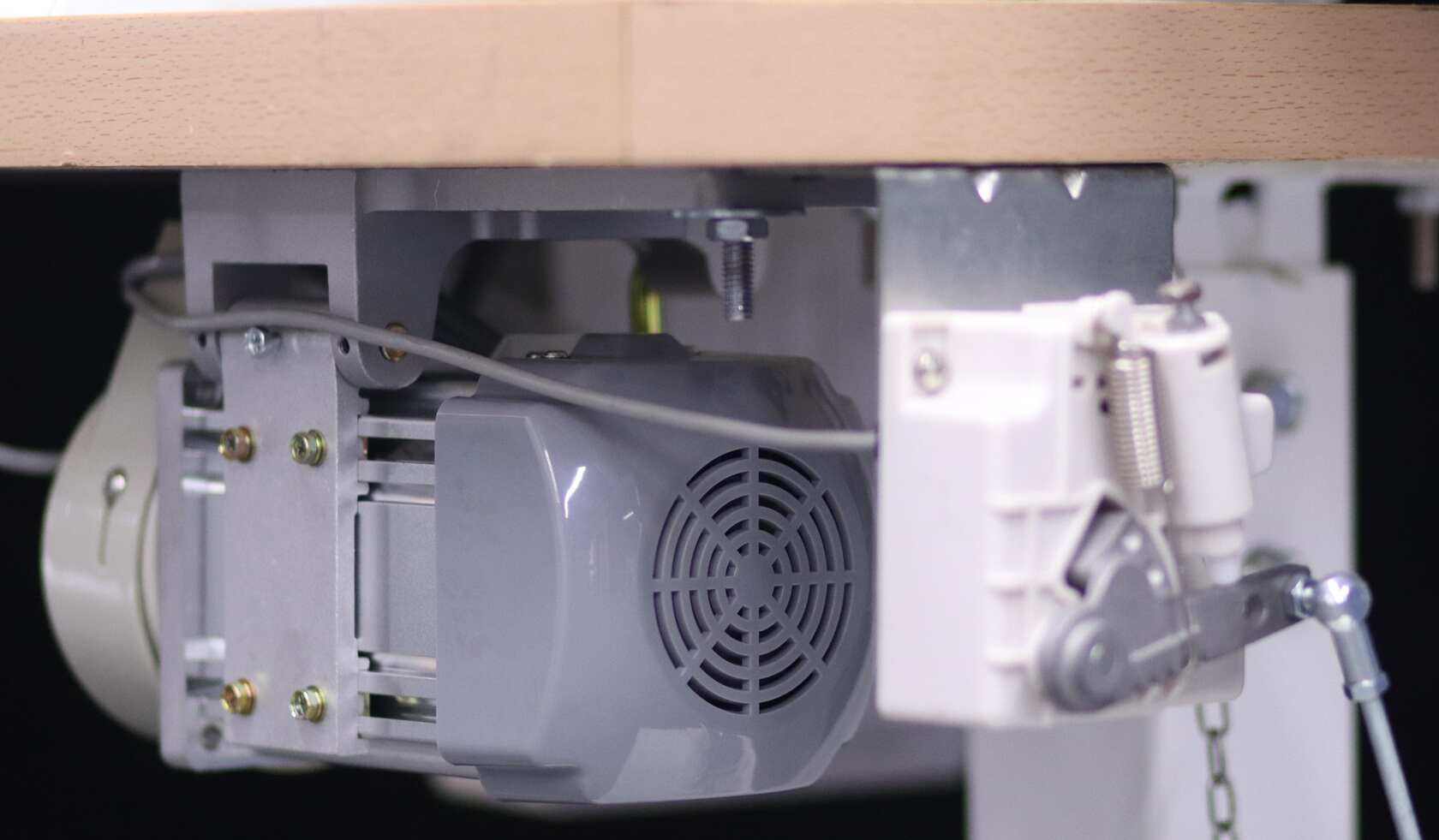

The machine is equipped with a Kinedyne HM-750SH 1-HP servo motor, providing the slow, controlled operation needed for heavy-material sewing.

Rather than forcing the operator to work at high production speeds, the servo allows the machine to be controlled at a deliberate pace when positioning material, following curves, sewing detailed sections, or approaching thick transitions.

A needle positioner is also supplied as standard, automatically stopping the needle in the up or down position to improve control and workflow efficiency.

---

Designed for Three-Dimensional Work

The 204-370 is particularly well suited to products that cannot simply be laid flat under the needle.

Its heavy-duty construction and available clearance make it useful for sewing three-dimensional components such as:

• Leather goods
• Furniture upholstery
• Saddlery
• Heavy bags
• Webbing assemblies
• Technical textile products
• Other bulky industrial products

An optional 420mm extended flatbed is available when additional working clearance is required.

---

Interchangeable Parts & Specialized Attachments

The 204-370 is designed with compatibility in mind, with parts interchangeable with the Dürkopp Adler 204-370 platform.

A broad range of specialized sewing attachments is also available, allowing the machine to be configured for different production requirements.

This gives businesses greater flexibility when adapting the machine to specific products, seam styles, and production processes.

---

Professional Applications

The HighTex 204-370 is an excellent choice for:

• Leather manufacturing
• Furniture and automotive upholstery
• Saddlery and harness work
• Webbing and strap sewing
• Heavy bags and cases
• Technical textiles
• Canvas products
• Industrial leather goods
• Decorative leather stitching
• Heavy-duty three-dimensional workpieces

---

Technical Specifications

---

Why Choose the HighTex 204-370?

The 204-370 is a machine for manufacturers and professional workshops that need more than basic walking-foot capability.

It combines:

✓ Extra-heavy-duty construction
✓ Triple-feed material transport
✓ Large barrel shuttle hook
✓ Very thick thread capability
✓ 20mm presser-foot lift
✓ 14mm maximum stitch length
✓ Excellent performance over thick seams and material transitions
✓ Slow-speed, high-torque servo control
✓ Automatic needle positioning
✓ Dürkopp Adler 204-370 compatible parts
✓ Specialized attachment options
✓ Optional 420mm extended flatbed

The result is a versatile industrial platform designed for businesses where seam quality, material handling, and dependable heavy-duty performance are all important.

---

Ordering Information

$4,895.00 — Plus Shipping

This is a special-order industrial machine.

For configuration details, availability, estimated lead time, shipping information, or to place an order:

Contact HighTex directly at +1 (626) 702-6369
