Description

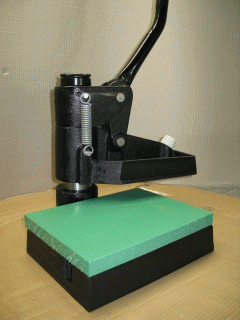

Cowboy 8360 Manual Clicker Die Cutting Press with Swing Arm

The Cowboy 8360 Manual Clicker Die Cutting Press brings the functionality of an industrial swing-arm clicker press into a compact, manually operated machine designed for workshops, leathercraft businesses, and small-scale production.

Built around a rugged mechanical cam-action system, the 8360 produces up to 5 tons of downward cutting pressure using manual leverage. It requires no electrical power, hydraulic system, or complicated pump assembly, making it a practical solution for businesses and artisans who need serious die-cutting capability without the operating requirements of a large hydraulic clicker press.

Its 360-degree swing-arm cutting head is one of the machine’s biggest advantages. The head can be moved completely out of the way, giving the operator an unobstructed view of the cutting board and making it easier to position dies accurately on leather hides and other materials.

Heavy-Duty Mechanical Cutting Power

The Cowboy 8360 uses a compound leverage, cam-actuated mechanism to multiply the operator’s force.

With cutting pressure of up to 5 tons, the press can handle a wide range of demanding materials and cutting applications, including:

• Leather
• Bridle leather
• Saddle leather
• Kydex
• Rubber
• Canvas
• Multi-layered fabrics
• Other suitable sheet and flexible materials

The long ergonomic handle provides mechanical advantage, helping reduce the amount of physical effort required during operation.

360° Swing-Arm Cutting Head

The swing-arm design makes the 8360 particularly useful for leather cutting.

Instead of repeatedly removing material from beneath a fixed cutting head, the operator can simply swing the cutting head away, reposition the material or die, and bring the head back into position for the next cut.

This provides:

• Clear visibility of the work surface
• Easy die positioning
• Faster repositioning between cuts
• Better access to the cutting board
• Improved control when working around natural imperfections in leather

For leatherworkers working with expensive hides, this visibility can also make it easier to position patterns around scars, blemishes, and other imperfections to help improve material utilization.

Adjustable Cutting Clearance

The 8360 features an adjustable platen height using a heavy-duty threaded steel column.

This allows the operator to adjust the working clearance for different die heights and material thicknesses. The press can accommodate standard steel-rule dies as well as taller die configurations, subject to the machine’s available clearance.

The rigid frame and adjustable setup help maintain controlled, parallel compression between the platen and cutting surface.

Designed to Reduce Material Waste

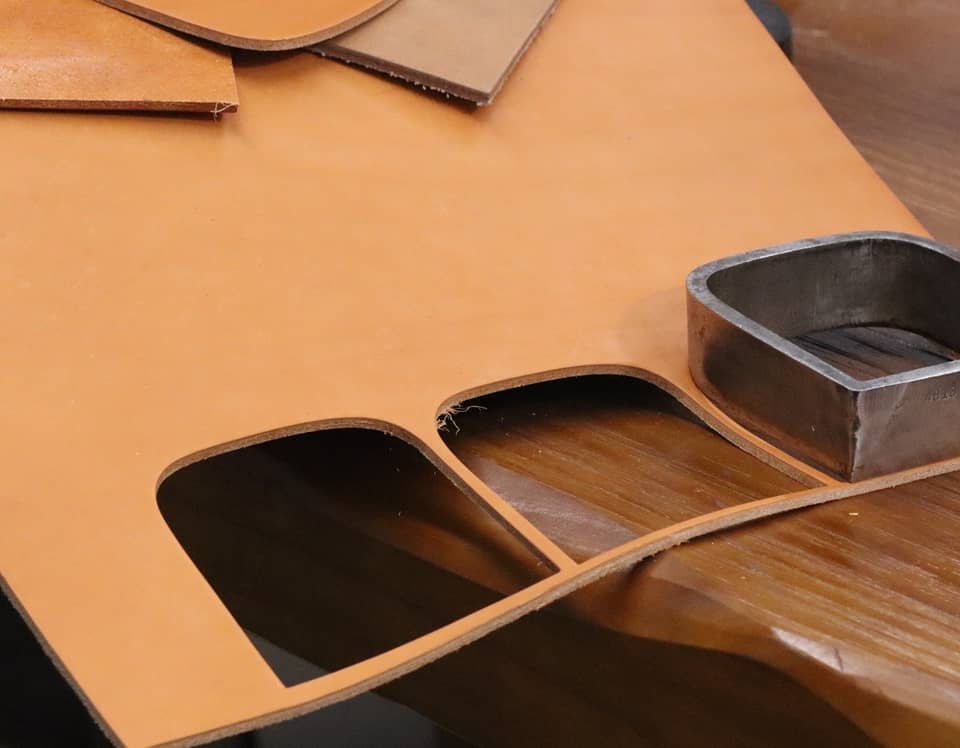

When cutting leather, positioning is just as important as cutting power.

The open swing-arm configuration gives the operator a clear view of the hide and allows dies to be positioned precisely before applying pressure. This is particularly valuable when working with hides containing natural scars or other areas that should be avoided.

The result is a more deliberate cutting process that can help maximize usable leather yield and reduce unnecessary material waste.

No Electricity or Hydraulics Required

The Cowboy 8360 is completely mechanical.

There is no:

• Electric motor
• Hydraulic pump
• Hydraulic fluid
• Electrical connection

required for operation.

This makes the machine particularly attractive for home leather workshops, small businesses, craft studios, garage workshops, and production environments where simplicity and low operating requirements are important.

Its mechanical operation also means there is no motor or hydraulic pump generating operating noise, making it a relatively quiet cutting solution.

Compact Workshop-Friendly Design

Large hydraulic clicker presses can require substantial floor space and dedicated installation.

The Cowboy 8360 takes a different approach with its compact manual design. Its relatively small footprint makes it suitable for workshops where floor space is limited while still providing substantial mechanical cutting force.

The machine can be used for professional leathercraft and small-batch production without requiring the infrastructure associated with a large hydraulic press.

More Than a Die-Cutting Machine

The 8360 can also be used for embossing and stamping leather.

Depending on the tooling and application, the press can be used for:

• Maker’s marks
• Leather logos
• Geometric patterns
• Decorative stamping
• Cheater dies
• Embossing applications

This makes the Cowboy 8360 a versatile addition to a leatherworking shop, combining die-cutting capability with additional pressing applications.

---

KEY FEATURES

• Up to 5 tons of mechanical cutting pressure
• Fully manual, hand-operated design
• No electricity required
• No hydraulic system required
• 360° swing-arm cutting head
• Open cutting area for easy die positioning
• Heavy-duty cam-actuated compound leverage mechanism
• Adjustable platen clearance
• Rigid cast-iron and steel construction
• Designed for steel-rule and clicker dies
• Suitable for leather, rubber, Kydex, canvas, and other materials
• Useful for leather cutting, embossing, and stamping
• Compact workshop-friendly design
• Suitable for professional leathercraft and small production environments

---

TECHNICAL SPECIFICATIONS

*Weight information is presented as supplied in the original product specifications.

---

APPLICATIONS

The Cowboy 8360 is suited for a variety of cutting and pressing applications, including:

Leather & Saddlery

• Leather goods
• Belts
• Wallets
• Bags
• Saddlery components
• Tack components
• Leather accessories

Industrial & Craft Materials

• Rubber
• Kydex
• Canvas
• Webbing
• Multi-layered fabrics
• Other suitable flexible sheet materials

Pressing & Embossing

• Maker’s marks
• Logos
• Leather embossing
• Decorative stamping
• Geometric patterns
• Cheater-die applications

---

WHY CHOOSE THE COWBOY 8360?

The Cowboy 8360 is designed for leatherworkers and small manufacturers who need the cutting power and workflow advantages of a swing-arm clicker press without stepping up to a large hydraulic machine.

Its combination of up to 5 tons of mechanical pressure, 360° swing-arm access, adjustable clearance, and compact construction makes it a practical choice for professional workshops and serious leathercraft operations.

Most importantly, its mechanical design keeps operation simple: no electricity, no hydraulic pump, and no hydraulic fluid—just mechanical leverage and properly selected cutting dies.

For a leatherworker who has reached the point where hand cutting is slowing production, the 8360 provides a substantial upgrade in cutting capability while maintaining a straightforward workshop setup.
