Product Overview

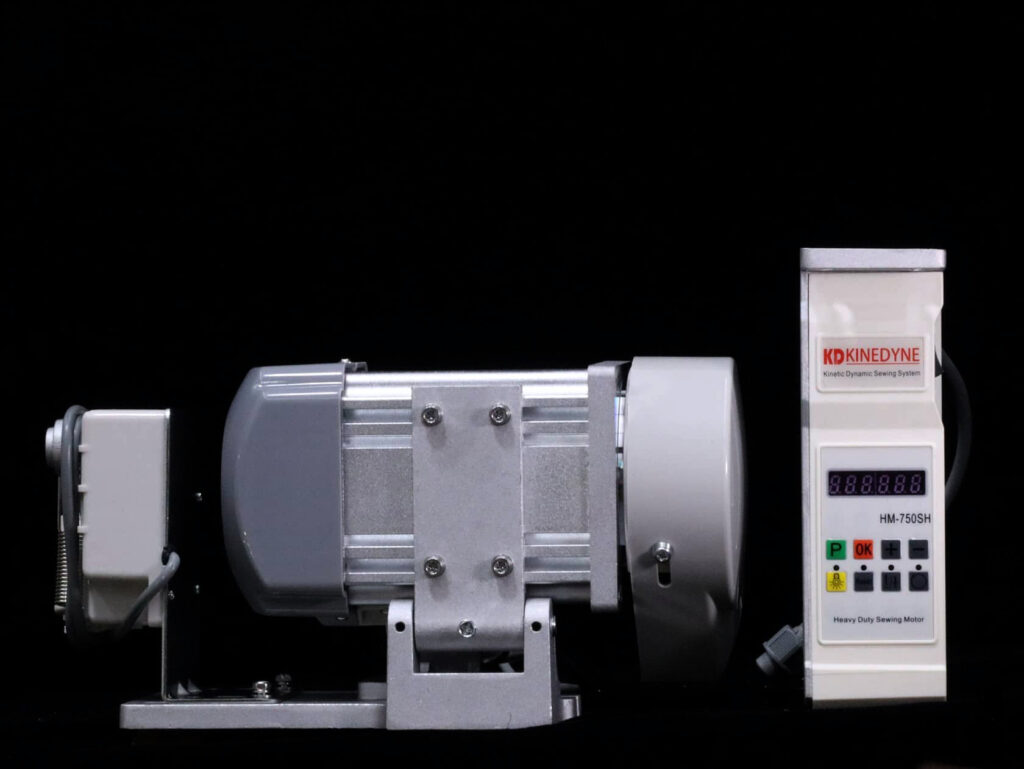

The Kinedyne HM-750SH is designed for sewing applications where power, low-speed control and long-duration reliability matter.

With 750W of power and up to 8.6 Nm of torque, the HM-750SH provides the strong, controlled drive required by extra-heavy-duty sewing machines working with thick leather, dense materials and multiple layers of heavy fabric.

Unlike conventional clutch motors that tend to operate at relatively high speeds and rely on mechanical speed-reduction systems for slower sewing, the HM-750SH can operate from as low as 50 RPM. This gives the operator precise control over individual stitches and slow-speed positioning without necessarily requiring an external speed reducer.

The HM-750SH is also specifically designed for demanding production environments. Its integrated overheat protection controller helps protect the motor’s electronic components during prolonged operation, making it particularly appropriate for extra-heavy-duty sewing machines and production facilities operating extended shifts.

Key Features

750W High-Torque Brushless Motor

The HM-750SH delivers 750W of power, approximately equivalent to 1 horsepower, providing the drive needed for heavy-duty sewing applications.

Its high torque output allows the motor to maintain strong driving force even when operating at very low speeds.

8.6 Nm Maximum Torque

With maximum torque of 8.6 Nm, the HM-750SH provides substantial rotational force for demanding sewing operations.

This is particularly valuable when sewing:

Thick leather
Multiple leather layers
Heavy webbing
Dense upholstery materials
Other difficult-to-penetrate materials

Ultra-Low 50 RPM Starting Speed

The motor can operate at speeds as low as 50 RPM.

This gives operators the ability to sew one stitch at a time or at extremely slow speeds, providing much greater control during detailed work, corners, curves and difficult material transitions.

For many applications, this can reduce or eliminate the need for an external speed reducer.

Smooth, Responsive Speed Control

The HM-750SH uses an electronic control system designed to provide responsive speed changes from the foot pedal.

The motor starts smoothly rather than abruptly jumping to high speed, allowing the operator to progressively increase sewing speed as required.

When the pedal is released, the motor is designed to stop quickly, helping minimize unwanted additional stitches.

Integrated Overheat Protection

One of the most important differences between the HM-750SH and HM-750SL is thermal protection.

The HM-750SH incorporates an overheat protection controller designed to help prevent excessive heat buildup within the motor’s electronic control components during extended operation.

This makes the HM-750SH particularly appropriate for:

Extra-heavy-duty sewing machines
Long production shifts
High-use workshops
Multi-shift manufacturing environments
Applications requiring prolonged low-speed operation

Precision Needle Positioner Compatibility

With the optional needle positioner synchronizer, the motor can be configured to stop the sewing machine needle in either the UP or DOWN position.

The DOWN position is useful when pivoting a workpiece because the needle remains engaged with the material while the operator changes direction.

The UP position makes it easier to remove the finished workpiece at the end of a seam.

Needle Positioner: +$50

JOG Dial

The optional JOG Dial provides another convenient method of controlling the sewing machine for precise positioning.

JOG Dial: +$75

Half-Stitch Control

The optional Half-Stitch Button provides additional control for applications where precise stitch positioning is important.

Half-Stitch Button: +$50

Low-Speed Button

The optional Low-Speed Button provides quick access to low-speed operation for controlled sewing.

Low-Speed Button: +$50

Automation Expansion Capability

The HM-750SH includes ports and firmware designed to support additional sewing-machine automation functions, including compatibility with systems such as:

Automatic presser-foot lifter
Needle cooler
Automatic reverse

This makes the motor more than simply a replacement power unit—it can serve as part of a broader automated heavy-duty sewing setup.

Soft-Start Function

The electronic control system includes a Soft Start function designed to provide smoother acceleration when sewing begins.

This can be particularly useful when working with heavy materials where sudden movement could affect material positioning.

Pure Copper Motor Windings

The HM-750SH uses pure copper stator windings designed to provide efficient electrical conductivity and reliable heat management during operation.

Reinforced Metal Mounting Base

The heavy-duty alloy mounting base provides a rigid foundation for the motor, helping maintain stability during high-torque operation.

Full Belt Guard

The integrated belt guard covers the motor pulley and belt area, helping reduce accidental contact with moving components during operation.

Ideal Applications

The Kinedyne HM-750SH is particularly suited for:

Extra-heavy-duty leather sewing machines
Heavy-duty cylinder-bed sewing machines
Industrial walking-foot machines
Leather stitchers
Upholstery sewing machines
Heavy webbing machines
Saddlery and tack equipment
Canvas sewing machines
Industrial production sewing machines

It is especially well matched with machines that require high torque at very low sewing speeds.

Technical Specifications

Specification	Details
Motor Type	Brushless Servo Motor
Power	750W
Maximum Torque	8.6 Nm
Lowest Speed	50 RPM
Maximum Speed	2,500 RPM
Voltage	110V
Warranty	12 Months
Packing Size	335 × 305 × 280 mm
Shipping Weight	8 kg

HM-750SH vs. HM-750SL

The HM-750SH and HM-750SL share the same basic 750W performance platform, but the SH is designed for more demanding operating conditions.

Feature	HM-750SH	HM-750SL
Power	750W	750W
Low-speed operation	50 RPM	50 RPM
High torque	8.6 Nm	Same base performance
Overheat protection	✓ Enhanced	—
Extended heavy-duty operation	Recommended	Less suited
Extra-heavy-duty leather machines	✓	Limited suitability
Long production shifts	✓	Better suited to lighter use

Which one should you choose?

If you’re powering a Cowboy/HighTex-style extra-heavy-duty leather sewing machine or expect the motor to run for extended periods every day, the HM-750SH is the stronger choice because of its enhanced thermal protection.

For medium-duty machines, hobby use and lighter production schedules, the HM-750SL may be sufficient.

Why Choose the Kinedyne HM-750SH?

750W / approximately 1 HP
8.6 Nm maximum torque
Ultra-low 50 RPM operation
Excellent stitch-by-stitch control
Smooth electronic speed response
Designed for extra-heavy-duty sewing machines
Integrated overheat protection
Suitable for extended production operation
Optional needle positioning
Optional JOG Dial
Optional half-stitch control
Optional low-speed button
Soft Start function
Automation expansion capability
Pure copper motor windings
Reinforced alloy mounting base
Full belt guard
12-month warranty

Perfect for Precision Leather Sewing

For leatherworkers, the ability to control a sewing machine at extremely low speed can be just as important as maximum motor power.

At 50 RPM, the HM-750SH allows the operator to slow the machine down dramatically when approaching corners, curves, thick seams or difficult transitions.

Combined with its 8.6 Nm torque, this gives heavy-duty leather sewing machines the combination of power and control required for detailed work.

Ordering Options

Base Motor — $375.00

Optional controls:

Needle Positioner — +$50
JOG Dial — +$75
Half-Stitch Button — +$50
Low-Speed Button — +$50

Shipping: Additional

Warranty: 12 months

For compatibility questions or assistance selecting the correct configuration, contact HighTex:

+1 (626) 702-6369

Shop

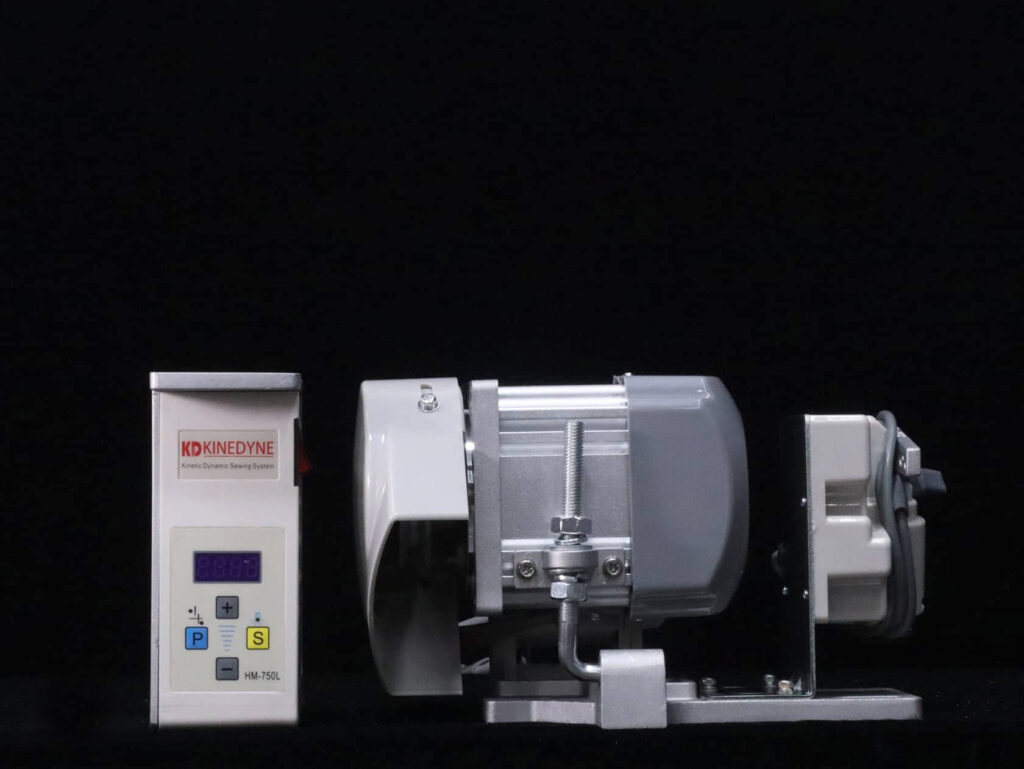

Kinedyne HM-750L 750W High-Torque Servo Motor for Heavy-Duty Sewing Machines

Kinedyne HM-750SH 750W High-Torque Low-Speed Servo Motor

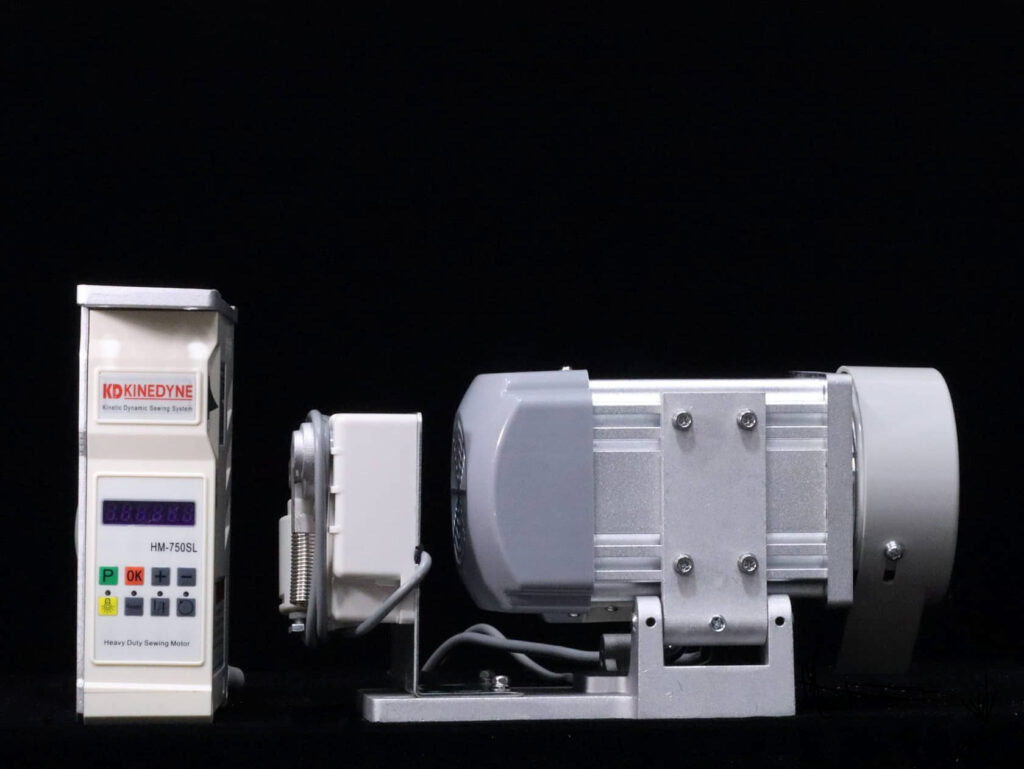

Kinedyne HM-750SL 750W High-Torque Low-Speed Servo Motor

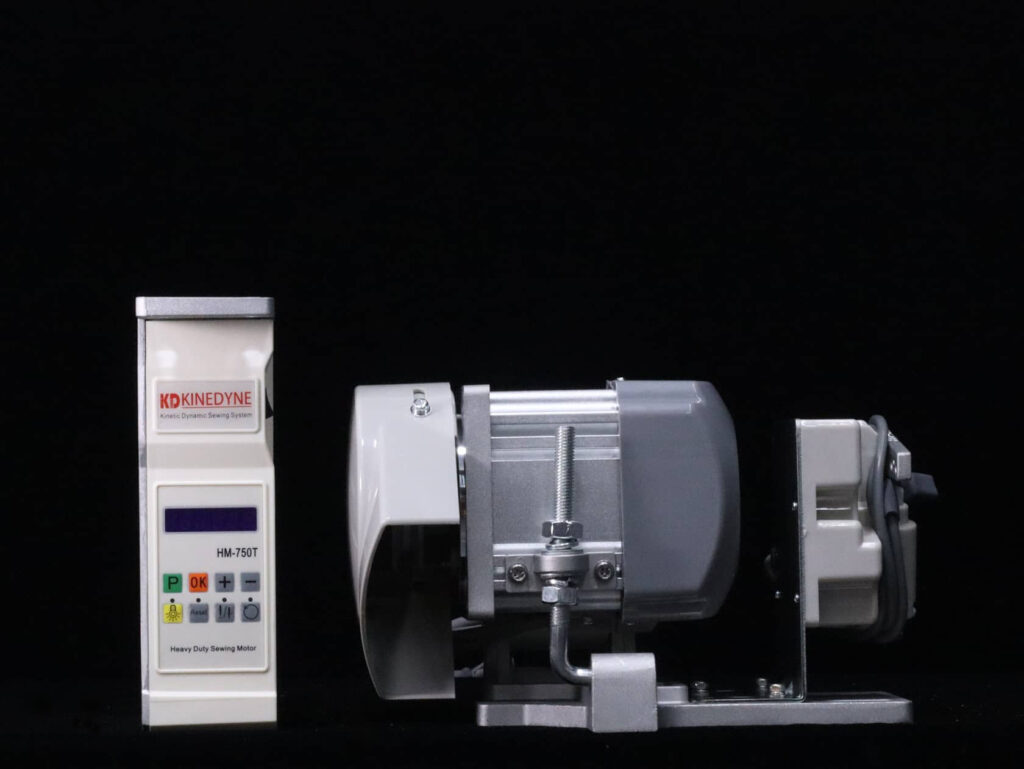

Kinedyne HM-750T 750W High-Torque Servo Motor with Pneumatic Control
