Description
Product Overview

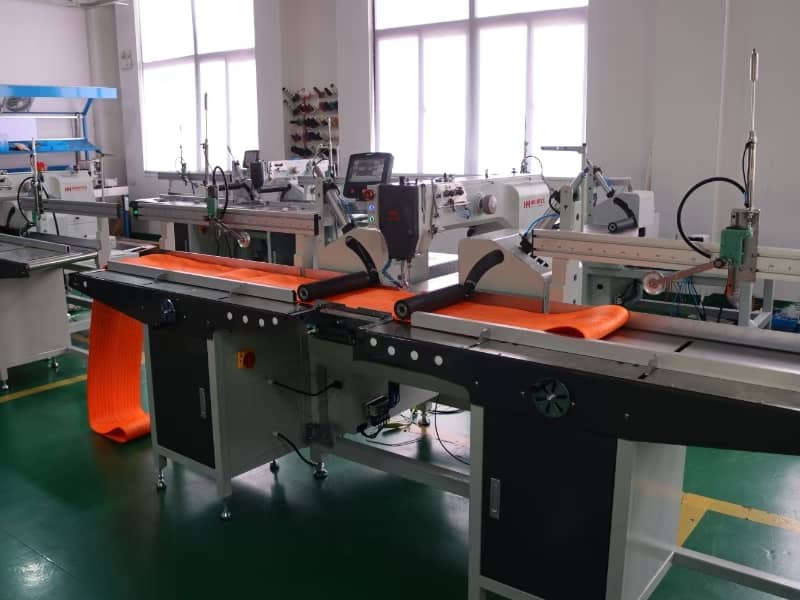

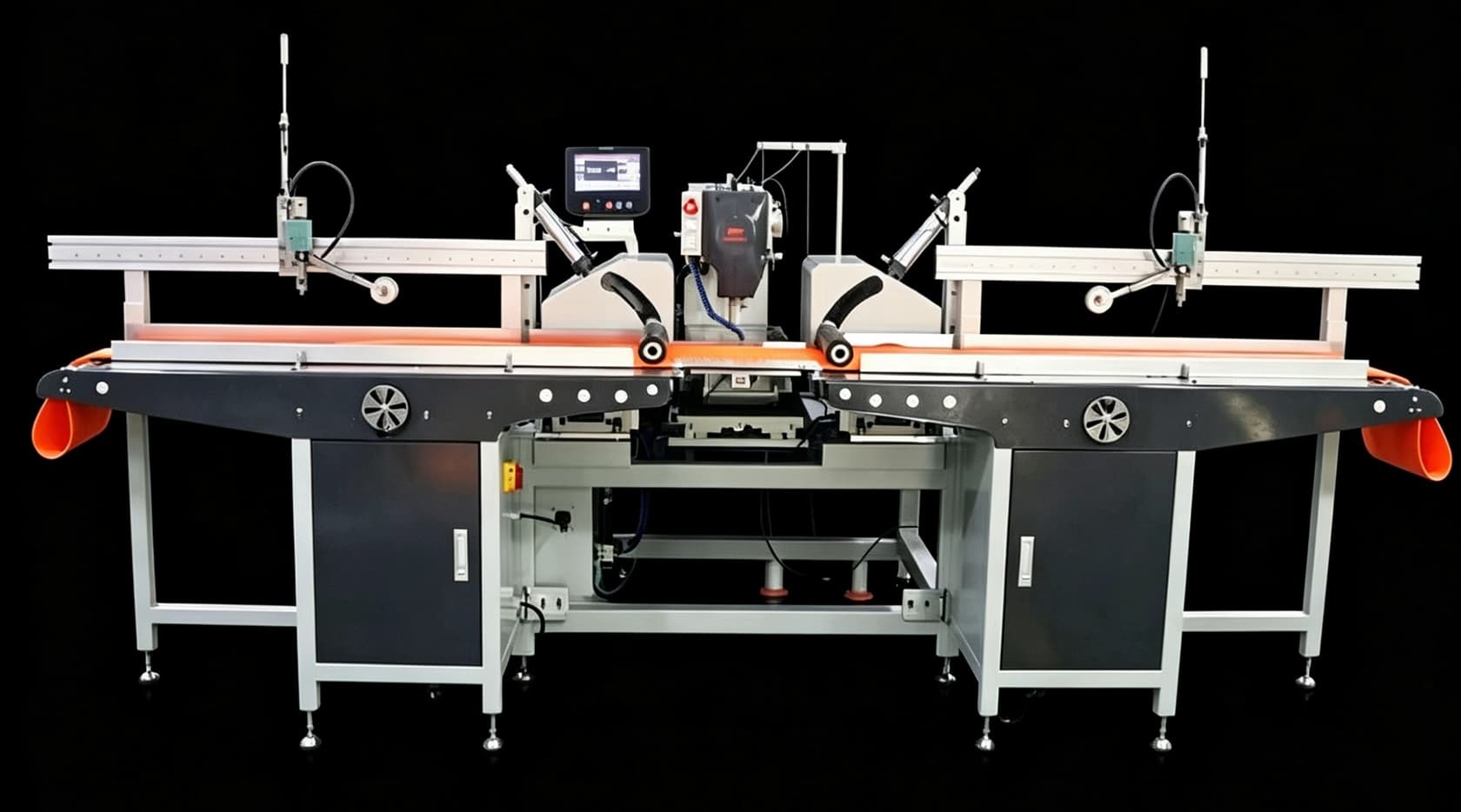

The HighTex WEB911-7X represents a different level of automation within the HighTex heavy-duty sewing equipment range.
Rather than simply automating an individual stitch pattern, the WEB911-7X is designed as an integrated production system for lifting slings, combining multiple sewing operations into one continuous automated workflow.
The machine can automatically perform three major stages of sling sewing:
- Assembly seams — joining multiple layers of heavy webbing.
- Lifting-eye reinforcement — producing high-strength reinforcement patterns such as box-X and diamond-style stitching.
- Longitudinal seams — sewing continuous straight seams along the length of the webbing.
By combining these processes into one automated system, the WEB911-7X reduces the need to repeatedly remove, reposition and transfer heavy webbing between separate sewing stations.
This makes it particularly suited to manufacturers looking to increase production capacity while reducing the amount of manual handling involved in heavy-duty sling manufacturing.
Key Features
Fully Automated Lifting Sling Production
The WEB911-7X is designed specifically around the production workflow of webbing lifting slings.
Instead of treating each sewing operation as a separate workstation, the system integrates multiple processes into a single automated production cycle.
This can help reduce:
- Material transfers
- Manual repositioning
- Operator handling
- Production bottlenecks
- Repetitive sewing labor
Three Sewing Processes in One System
The WEB911-7X can perform:
Assembly Seams
Joins multiple layers of heavy webbing together.
Reinforcement Stitching

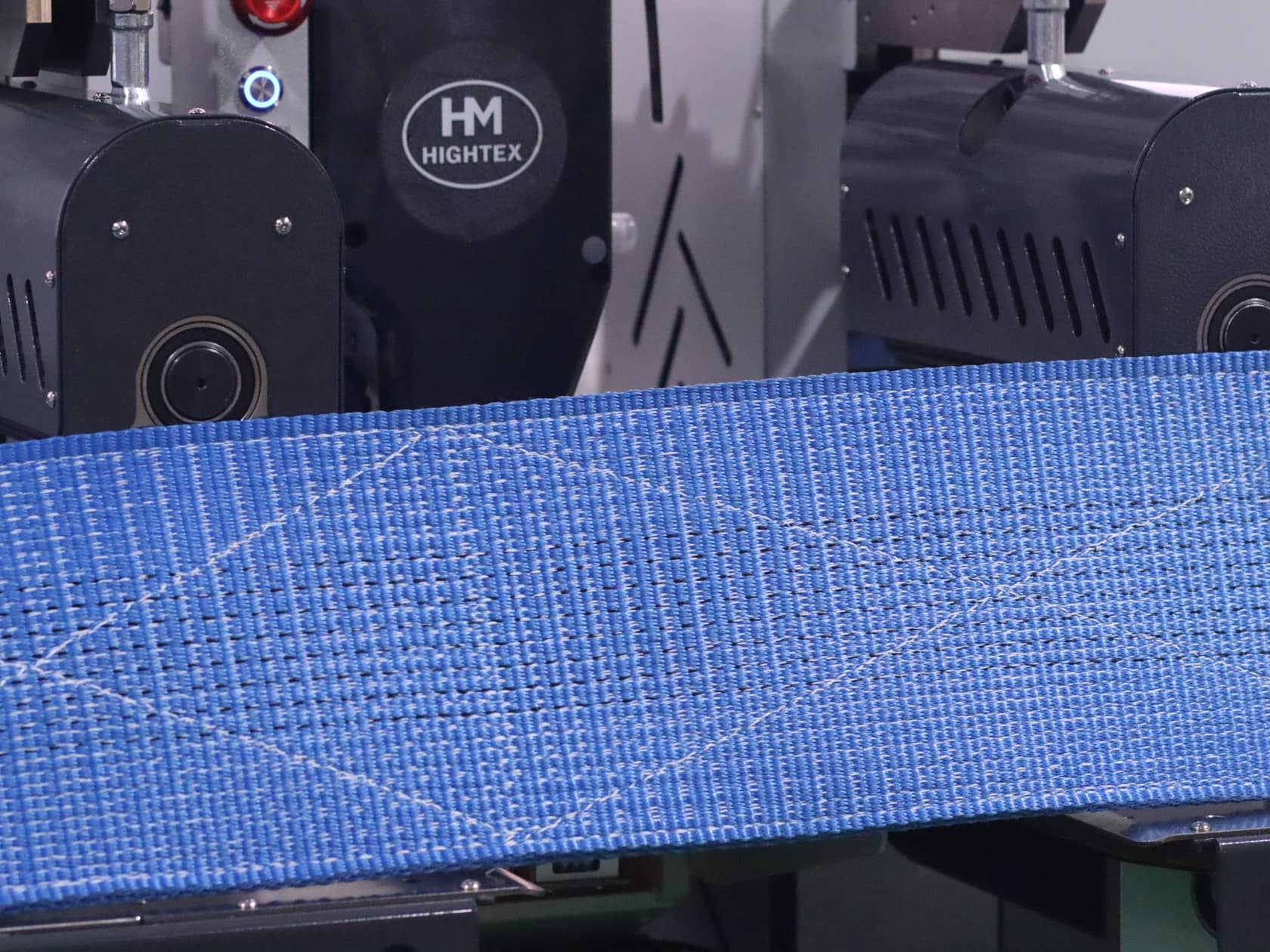

Creates programmed reinforcement patterns for lifting eyes, including box-X and diamond-style configurations.
Longitudinal Seams
Produces continuous straight stitching along the length of the sling.
The ability to combine these operations is one of the machine’s defining advantages.
50–300mm Sewing Width
The machine accommodates webbing widths from 50mm to 300mm, allowing it to work with a broad range of industrial sling configurations.
This wide working range makes the WEB911-7X suitable for manufacturers producing different sling sizes on the same automated platform.
Virtually Unlimited Sewing Length
With a maximum sewing length specified as any length / endless, the WEB911-7X is designed for continuous longitudinal sewing applications without the fixed pattern-area limitation found on conventional programmable pattern machines.
This is particularly important for long lifting slings where uninterrupted longitudinal stitching is required.
Extra-Large Rotary Hook
The WEB911-7X uses a 7-times-larger rotary hook designed to accommodate significantly more thread than a conventional hook.
Its large bobbin capacity helps reduce interruptions caused by frequent bobbin changes during long production cycles.
Heavy-Duty Thread Capability
The machine is designed to run extremely heavy, high-tensile sewing threads up to:
- Metric #4
- V693
- T-700
- 2000d × 3
This makes it appropriate for heavy-duty lifting sling construction where substantial thread is required.
Integrated Needle Cooling
High-speed sewing of synthetic webbing can generate significant heat around the needle.
The WEB911-7X incorporates a continuous cold-air needle cooling system designed to help control needle temperature during operation and reduce the risk of heat-related damage to synthetic webbing.
Intelligent Bobbin Thread Sensor
An integrated bobbin thread remaining sensor monitors the lower thread supply and can automatically pause the machine when the bobbin thread runs out.
This helps prevent production from continuing without lower thread and reduces the need for operators to constantly monitor bobbin levels.
Heavy-Duty Sewing Capacity
The WEB911-7X can sew compressed material thicknesses of up to 18mm, making it suitable for multiple layers of heavy webbing used in industrial lifting sling construction.
Labor-Saving Automation
One of the main reasons to consider the WEB911-7X is the change it can make to the production workflow.
Traditional heavy-duty sling production can require several operators to hold, position and maneuver large sections of webbing during sewing.
The WEB911-7X automates much of this repetitive handling and sewing process. According to the supplied production information, a single operator can manage approximately 2–3 machines simultaneously, depending on the product configuration and workflow.
This can allow manufacturers to redirect skilled labor toward other production tasks while maintaining automated sling production.
Actual labor savings will vary depending on sling design, production volume, operator workflow and factory layout.
Production-Ready Delivery
Because the WEB911-7X is a sophisticated automated production system, HighTex follows an extensive preparation process before shipment.
The supplied information states that approximately:
- 4 weeks are dedicated to machine assembly.
- 30 days are dedicated to pre-programming and testing.
- Testing is performed using the customer’s specified thread and webbing samples.
The objective is to have the machine assembled, programmed and calibrated around the customer’s intended application before it arrives at the production facility.
This is particularly valuable with specialized automation because the machine can be prepared around the actual materials and sewing requirements rather than leaving the customer to configure the system entirely after delivery.
Applications
The HighTex WEB911-7X is specifically designed for lifting sling manufacturing, including:
- Webbing lifting slings
- Industrial lifting straps
- Reinforced lifting eyes
- Heavy-duty webbing assemblies
- Synthetic lifting products
- Continuous longitudinal webbing seams
- Heavy-duty safety and industrial webbing products
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Fully Automatic Lifting Sling Sewing Machine |
| Maximum Speed | 1,500 SPM |
| Sewing Width | 50–300 mm |
| Maximum Sewing Length | Any length / Endless |
| Needle | 1000H #280 or 794 (DY×3) #280 |
| Maximum Thread Size | #4 / V693 / T-700 / 2000d × 3 |
| Bobbin | 41mm diameter × 17mm height |
| Hook Type | 7× larger rotary hook |
| Maximum Sewn Thickness | 18 mm |
| Stitch Length | 3–12.7 mm |
| Pattern Input | Template setting |
| Machine Layout | 3500mm L × 1500mm W |
| Power | 200–240V, 1 or 3 Phase |
Why the WEB911-7X Is Different
The WEB911-7X shouldn’t be viewed simply as a larger version of the 7273CNC.
The 7273CNC is a heavy-duty programmable pattern sewing machine designed to produce individual patterns on products such as slings, cargo straps and harnesses.
The WEB911-7X goes further by integrating multiple sling-production operations into one automated system.
7273CNC
Programmable pattern sewing → individual reinforced webbing components
WEB911-7X
Assembly → lifting-eye reinforcement → continuous longitudinal sewing → integrated production workflow
That distinction is important for customers evaluating your automatic-machinery category.
High-Volume Sling Manufacturing
The WEB911-7X is intended for manufacturers where production volume, labor efficiency and process automation justify a substantial investment in specialized equipment.
Its combination of:
Wide webbing capacity
- Endless sewing length
- Large-capacity rotary hook
- Heavy-thread capability
- Automatic bobbin monitoring
- Needle cooling
- Integrated multi-stage sewing
creates a production platform specifically tailored to industrial lifting sling manufacturing.
Why Choose the HighTex WEB911-7X?
- Fully automated lifting sling sewing system
- Designed specifically for webbing sling production
- Performs multiple sewing operations in one production cycle
- Assembly seam sewing
- Automated lifting-eye reinforcement
- Continuous longitudinal sewing
- 50–300mm sewing width
- Endless/any-length longitudinal sewing capability
- Up to 18mm compressed sewn thickness
- Up to 1,500 SPM
- Extra-large 7× rotary hook
- Large-capacity bobbin
- Heavy thread capability up to #4 / V693 / T-700 / 2000d×3
- Continuous cold-air needle cooling
- Intelligent bobbin thread remaining sensor
- Automated production workflow
- Designed to reduce manual material handling
- Supports multi-machine operator workflows
- Custom pre-programming and testing
- Comprehensive technical support
Ordering Information
Price: $69,900.00 + shipping
The WEB911-7X is a special-order automated production system. Because this machine is configured and tested around the customer’s intended webbing and thread specifications, customers should contact HighTex to discuss application requirements, configuration and current lead time.
Contact to Order: +16267026369
