Description

Product Overview

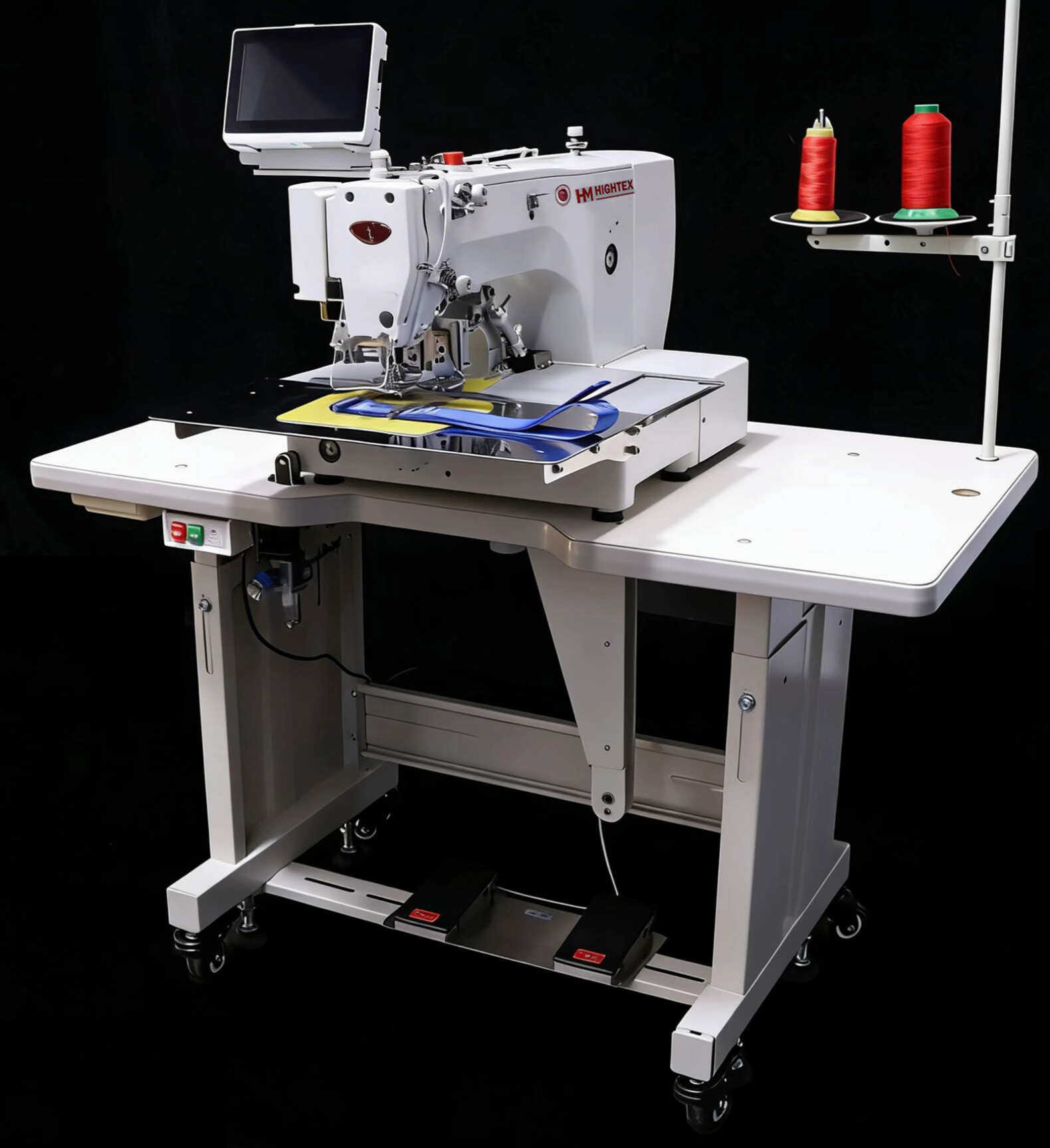

The HighTex BAS-311H is a compact programmable pattern sewing machine designed for manufacturers who need a combination of precision, repeatability and heavy-duty sewing capability.

Its particular strength is controlled, high-quality pattern sewing. The machine is capable of producing smooth and consistent stitches with a minimum pattern resolution of 0.05mm, making it well suited to applications where stitch appearance and positioning are important.

The BAS-311H is particularly effective for premium leather goods and automotive interior components, while its extended needle-bar stroke also gives it the ability to handle harder and heavier webbing for applications such as safety harnesses and seat belts.

A high-rigidity feeding system and barrel-type shuttle hook work together to provide controlled material movement and consistent stitch formation, including at higher sewing speeds.

The machine also incorporates several production-efficiency features, including automatic thread trimming, presser-foot control, touchscreen programming and cycle sewing memory, reducing repetitive manual operations and making the machine easier to integrate into a modern production workflow.

---

Key Features

Precision Pattern Sewing

The BAS-311H is engineered for accurate and repeatable programmable pattern sewing.

With a minimum resolution of 0.05mm, the machine can produce finely controlled stitch patterns where precision and appearance are important.

This makes it particularly suitable for premium finished products where inconsistent stitching can affect both appearance and quality.

---

Designed for Leather & Automotive Interiors

The BAS-311H is particularly well suited to:

• Premium leather goods
• Automotive interiors
• Leather accessories
• Seat components
• Upholstery details
• Reinforced leather assemblies

Its controlled feeding and precision pattern capabilities make it a strong choice where both stitch appearance and repeatability matter.

---

Heavy-Duty Webbing Capability

Although precision is a major focus, the BAS-311H is not limited to lightweight materials.

Its longer needle-bar stroke allows the machine to work with harder and heavier webbing, making it suitable for products such as:

• Safety harnesses
• Seat belts
• Heavy-duty straps
• Reinforced webbing components

This gives the machine a useful combination of precision production and material capability.

---

Automatic Short-Thread Trimming

The updated automatic thread trimming system is designed to cut thread very short at the end of the sewing cycle.

This reduces the amount of manual thread trimming required and can help improve production efficiency and finishing consistency.

For repetitive pattern sewing, eliminating unnecessary manual trimming can save considerable operator time over a production run.

---

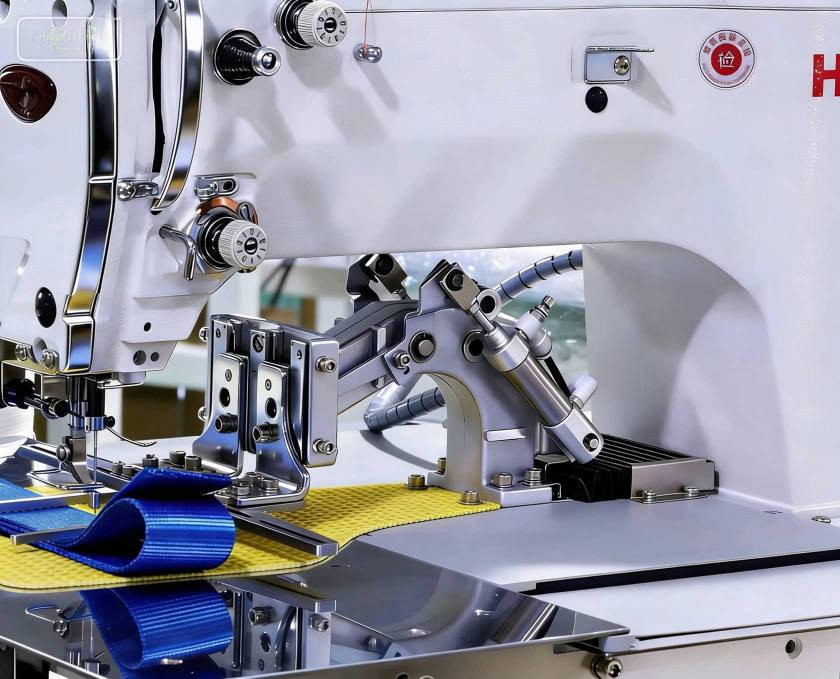

High-Rigidity Feeding System

The BAS-311H uses a high-rigidity feeding mechanism designed to maintain controlled material movement throughout the sewing cycle.

Accurate feeding is especially important in programmable pattern sewing because the machine must maintain the intended stitch path throughout the pattern.

The rigid feeding system contributes to the machine’s consistent stitch formation and precise pattern execution.

---

Presser-Foot Control

The presser-foot control mechanism is designed to maintain consistent thread tightness when material thickness changes.

The height of the stepping presser foot can automatically adjust according to the material thickness without requiring tools, helping operators transition between different workpieces more efficiently.

---

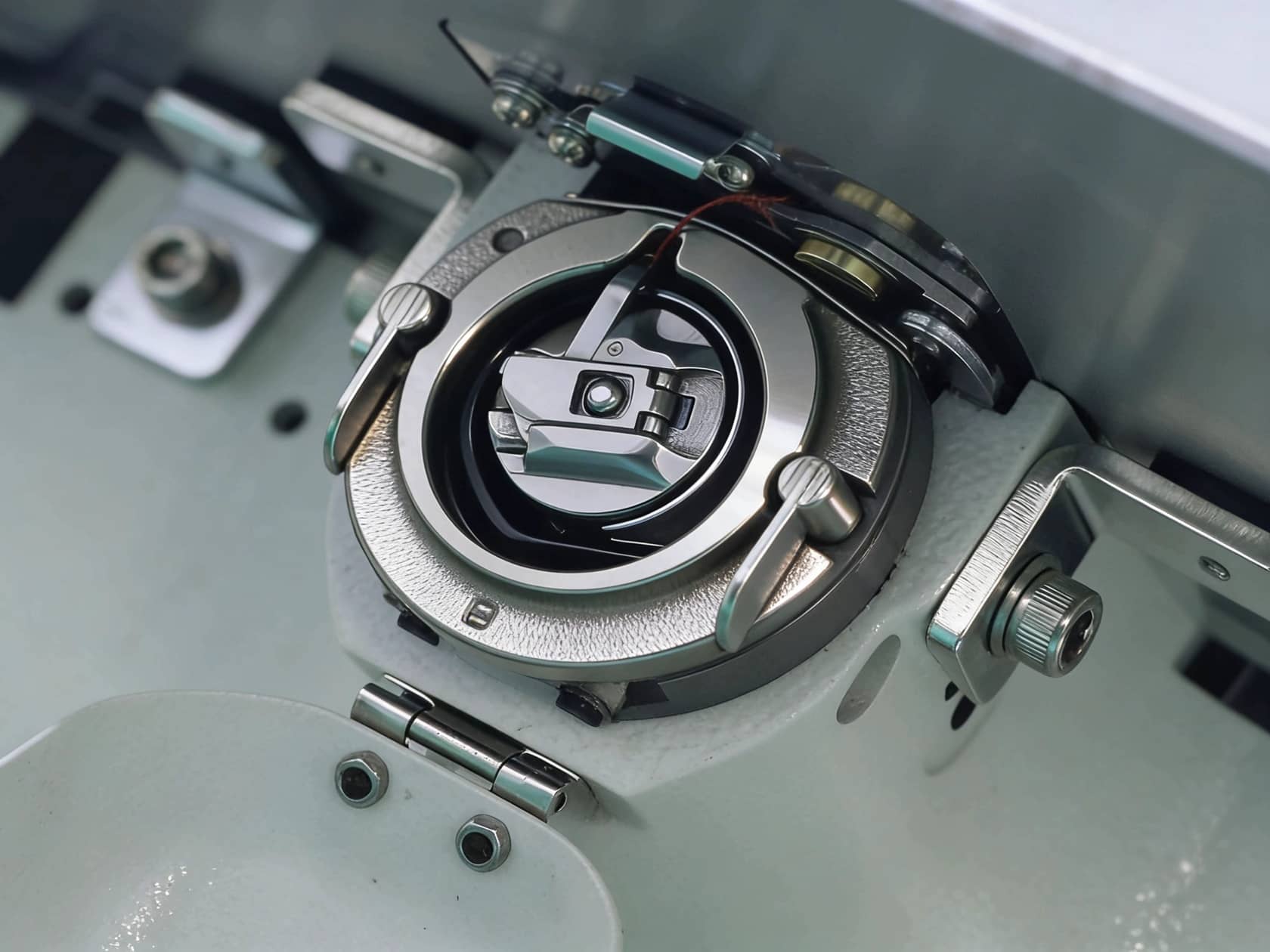

Large Shuttle Hook with Increased Bobbin Capacity

The machine uses a large barrel-type shuttle hook with approximately twice the bobbin capacity of a standard configuration.

The increased capacity helps reduce bobbin changes, particularly when sewing with heavier thread.

Maximum specified thread size is:

Metric #15 / V207 / T-210 / 630d×3

---

Touchscreen Pattern Programming

The BAS-311H features a convenient touchscreen control interface for operating and managing sewing patterns.

Operators can:

• Select sewing patterns
• Adjust sewing speed
• Set the bobbin thread counter
• Store cycle sewing programs
• Select the operating language
• Manage programmed production functions

---

15-Language Interface

The operation panel supports 15 languages, including:

• English
• Spanish
• French
• Russian
• Portuguese
• Arabic

This makes the machine suitable for diverse production environments and multinational manufacturing teams.

---

Up to 2,000 Patterns

The BAS-311H can store up to 2,000 sewing patterns, allowing manufacturers to maintain a substantial library of production programs.

This is particularly useful for businesses producing multiple leather, automotive, harness or webbing products.

---

Applications

The HighTex BAS-311H is suited to a wide range of precision and heavy-duty pattern sewing applications:

Leather & Finished Goods

• Premium leather goods
• Leather accessories
• Bags and cases
• Reinforced leather components

Automotive

• Automotive interiors
• Seat components
• Interior trim
• Reinforced automotive textile and leather components

Safety & Webbing

• Safety harnesses
• Seat belts
• Heavy webbing
• Industrial straps
• Reinforced webbing assemblies

---

Technical Specifications

---

Precision Where Stitch Appearance Matters

The BAS-311H is especially valuable when the sewing pattern itself forms part of the finished product’s appearance.

In premium leather goods and automotive interiors, stitching needs to follow the programmed path accurately and maintain a consistent appearance from one piece to the next.

The machine’s 0.05mm minimum pattern resolution, high-rigidity feeding system and controlled presser-foot operation are designed around precisely this requirement.

This makes the BAS-311H a strong choice for manufacturers who want the benefits of programmable automation without sacrificing attention to stitch quality.

---

Production Efficiency Without Excessive Complexity

The BAS-311H combines automation with practical operator controls.

Instead of requiring the operator to manually reproduce each pattern, the desired sewing program can be stored and recalled through the touchscreen interface.

Automatic thread trimming then completes another repetitive task at the end of the cycle.

The result is a production workflow built around:

Program → Position → Sew → Automatically Trim → Repeat

This can improve consistency while reducing repetitive manual operations.

---

Why Choose the HighTex BAS-311H?

• Precision programmable pattern sewing
• 0.05mm minimum pattern resolution
• Designed for premium leather goods
• Excellent fit for automotive interior production
• Suitable for safety harnesses and seat belts
• Handles heavier webbing
• Up to 15mm sewn thickness
• Automatic short-thread trimming
• High-rigidity feeding system
• Presser-foot height control
• Large barrel-type shuttle hook
• Approximately 2× bobbin capacity
• Thread capability up to Metric #15 / V207 / T-210
• Touchscreen operation
• 15-language interface
• Up to 2,000 stored patterns
• 1000W motor
• Maximum speed of 2,700 RPM
• Compact footprint relative to larger heavy-duty pattern machines

---

Where the BAS-311H Fits in the HighTex Range

The BAS-311H gives the Heavy-Duty Automatic & Programmable Sewing Machines category another important capability.

The range now covers everything from relatively accessible programmable production machines to specialized extreme-duty systems.

The BAS-311H sits toward the precision-production side of the range:

ASM911 → Affordable heavy-duty webbing automation

BAS-311H → Precision leather, automotive & webbing pattern sewing

7273CNC → Large-format heavy webbing automation

733PLC → Extreme-duty heavy-material pattern sewing

WEB911-7X → Fully automated lifting-sling production

---

Ordering Information

Price: $9,950.00 + shipping

The HighTex BAS-311H is available by special order. Contact HighTex to discuss your material, thread and pattern requirements and obtain an estimated lead time.

Contact to Order: +1 (626) 702-6369
