Description
Product Overview

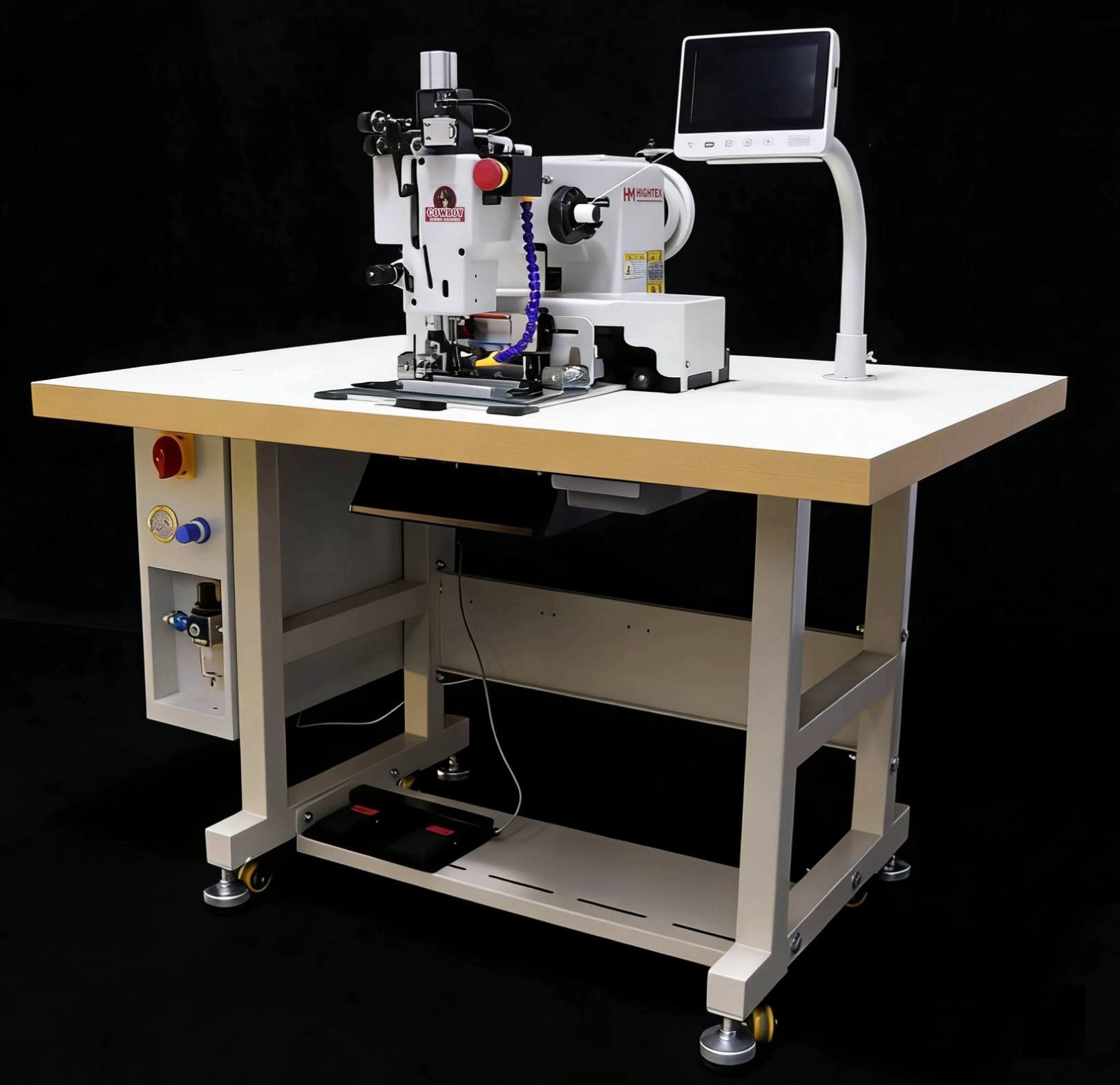

The HighTex 71008G is designed for manufacturers who need reliable automated stitching for heavy materials, thick webbing, rope and safety equipment.
Built on the proven platform of the 71008 series, the 71008G replaces the older keyboard-based control system with a modern CNC touchscreen interface and visual pattern editing system. This makes creating, modifying and selecting sewing patterns significantly more approachable, particularly for operators who are new to programmable pattern sewing.
Its heavy-duty mechanical design is matched with a powerful pneumatic system and purpose-built workholding fixture. The specialized clamp securely holds rope and other workpieces from multiple directions, helping prevent movement or jumping during sewing. Combined with strong needle penetration and controlled pneumatic operation, the machine produces consistent stitch formation across demanding applications.
The machine is particularly well suited to bar-tacking and pattern sewing on climbing ropes, safety harness components, dog leashes and similar heavy-duty products where repeatability and production efficiency are important.
Key Features
Heavy-Duty Large Barrel Shuttle Hook
The large barrel shuttle hook is specifically designed to handle heavy materials and thick sewing thread. Its large bobbin capacity helps reduce the frequency of bobbin changes during production.
Large-Capacity Bobbin for Heavy Thread
The 71008G accommodates thread sizes up to Metric #7 / V415 / T-400 / 1300d×3, making it suitable for applications requiring exceptionally heavy thread.

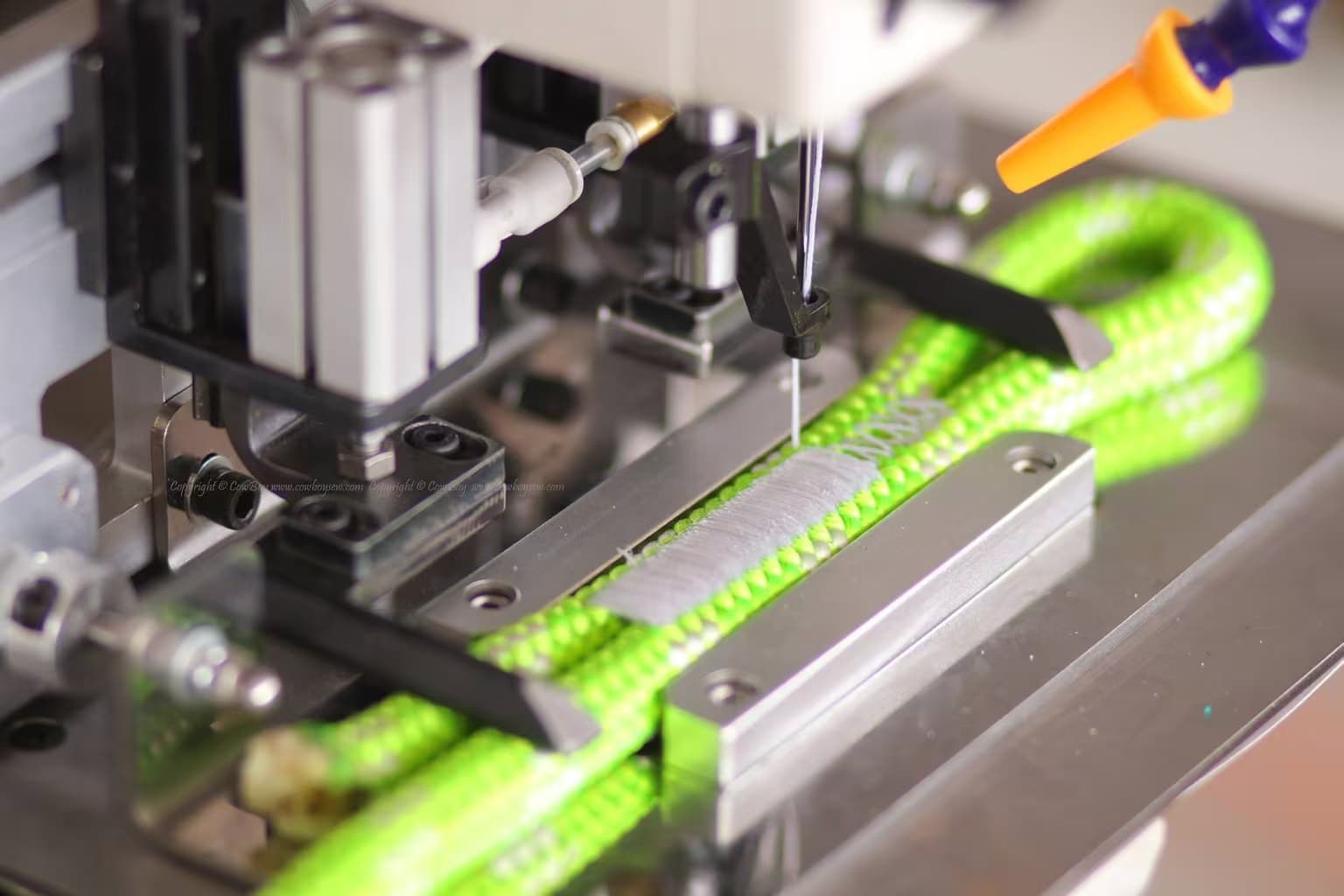

Specialized Pneumatic Rope Clamp
A sophisticated pneumatic clamp securely holds the rope or workpiece in multiple directions during sewing. This helps minimize movement and maintain accurate positioning throughout the programmed sewing cycle.
Automatic Heavy-Thread Trimmer
The integrated automatic thread trimmer is engineered to reliably cut very thick thread, helping reduce manual finishing work and improving production efficiency.

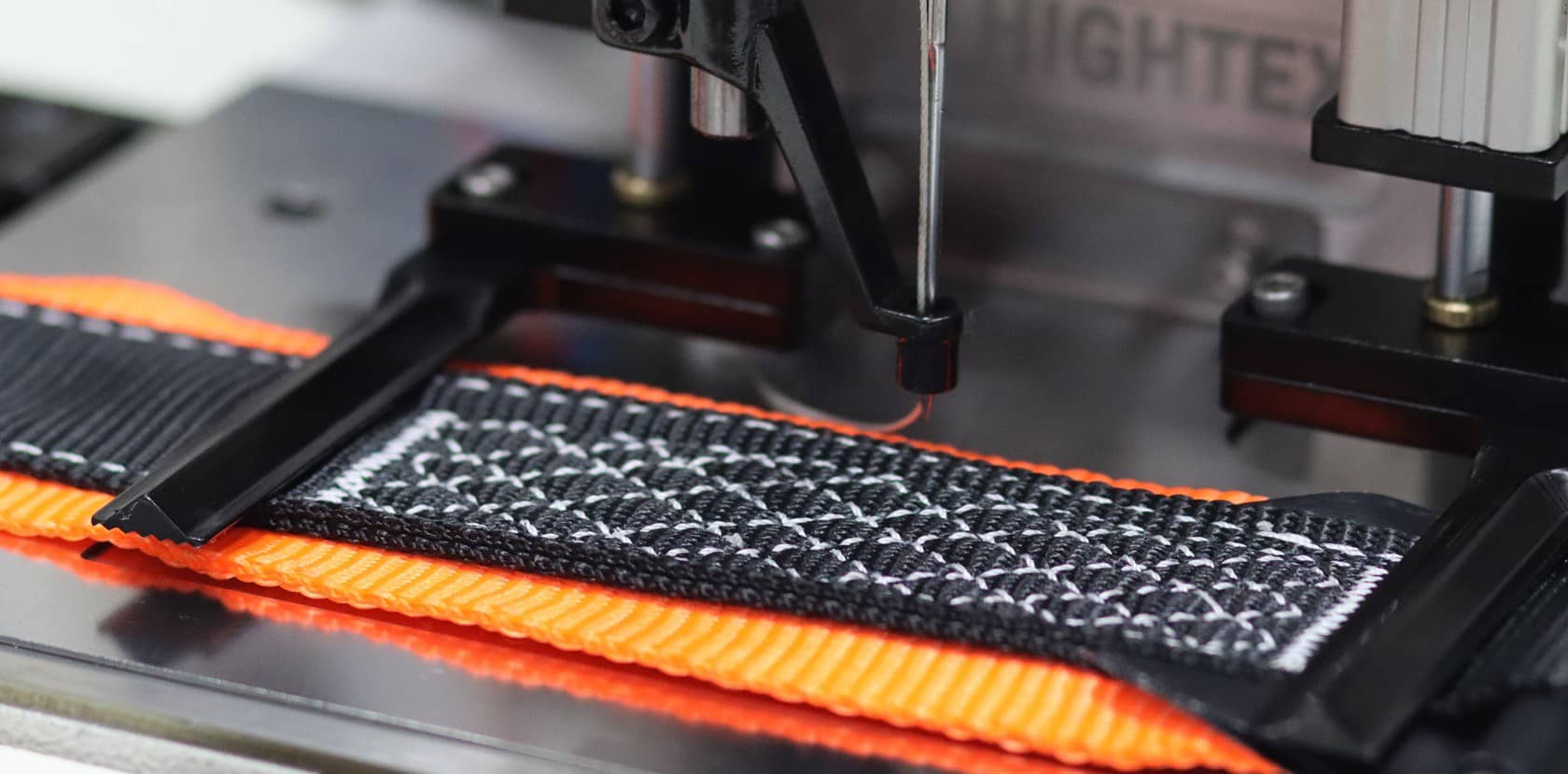

Consistent Pattern Sewing
Strong needle penetration, pneumatic operation and a custom-made fixture work together to provide controlled material handling and consistent stitch formation across repeated production cycles.

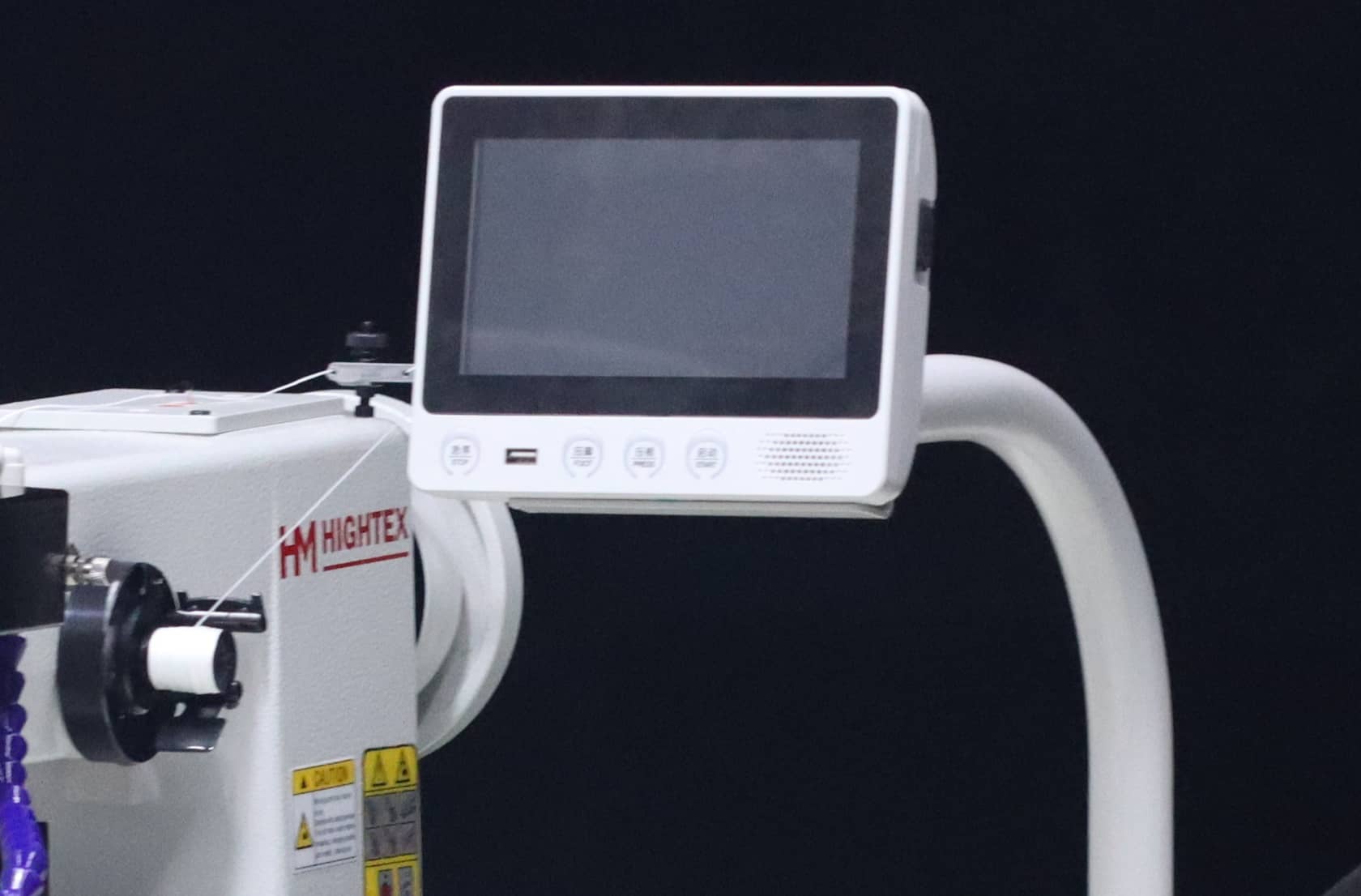

CNC Touchscreen Pattern Control
The 71008G features an intuitive touchscreen pattern-making system that makes programming and editing sewing patterns easier than the older keyboard-based control system used on previous-generation machines.
Beginner-Friendly Pattern Programming
Creating a new programmable sewing pattern can be challenging for inexperienced operators. The 71008G is designed with an accessible pattern-editing interface and a selection of straightforward sewing patterns to help shorten the learning curve.
Extensive Pattern Memory
The machine can store up to 2,000 sewing patterns, allowing manufacturers to maintain a large library of production programs and switch between different applications as needed.
Comprehensive Spare Parts Package
Each machine is supplied with a comprehensive spare parts package to support ongoing maintenance and servicing, helping keep the machine productive over the long term.
Long-Term Technical Support
HighTex provides technical support based on extensive experience servicing and repairing heavy-duty sewing equipment, including assistance through email and video conferencing when troubleshooting or servicing is required.
Applications
The HighTex 71008G is particularly suited for automated heavy-duty stitching and bar-tacking applications including:
- Safety harnesses
- Climbing ropes
- Industrial rope products
- Large dog leashes
- Heavy-duty webbing assemblies
- Safety and restraint products
- Reinforced textile components
- Heavy-duty straps and assemblies
- Custom programmed pattern sewing
- Bar-tacking applications requiring repeatable production
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Heavy-Duty Automatic Programmable Pattern Sewing Machine |
| Max. Pattern Sewing Speed | 600 RPM |
| Bar-Tacking Speed | 300 RPM |
| Maximum Sewing Area | 130 × 60 mm |
| Maximum Stitch Length | 12.7 mm |
| Needle | 794 (DY×3) #26 |
| Maximum Thread Size | Metric #7 / V415 / T-400 / 1300d×3 |
| Bobbin | 7/8″ × 1″ Large Capacity |
| Maximum Foot Lift | 1 1/16″ |
| Maximum Sewn Thickness | 22 mm |
| Pattern Input | Touchscreen |
| Pattern Memory | Up to 2,000 patterns |
| Air Pressure | 0.6 MPa |
| Motor | 1000W / 200–240V |
Built for Repeatable Heavy-Duty Production
For safety equipment and rope products, consistent positioning and stitch quality are critical. The 71008G addresses this through a combination of automated pattern control, pneumatic workholding, heavy-duty feeding and high thread-handling capacity.
The programmable system allows the operator to reproduce the same sewing pattern repeatedly, while the specialized clamp helps keep the workpiece properly positioned throughout the cycle. This makes the machine especially valuable for businesses producing multiple units of the same harness, rope, leash or other reinforced product.
The automatic thread trimming system further reduces manual intervention at the end of each sewing cycle, helping streamline production.
A Modern Upgrade to the Proven 71008 Platform
The 71008 series has been used for years in applications involving climbing rope, safety harnesses and large dog leashes. The 71008G builds on that established heavy-duty platform while addressing one of the biggest limitations of earlier versions: the older electronic control and keyboard-based pattern programming system.
With its CNC touchscreen interface and visual pattern editing capabilities, the 71008G provides a more modern operator experience while retaining the heavy-duty mechanical characteristics required for demanding production environments.
Why Choose the HighTex 71008G?
- Heavy-duty construction for demanding production
- Designed specifically for rope, harness and heavy-duty pattern sewing
- Large barrel shuttle hook
- Large-capacity bobbin for heavy thread
- Handles thread up to Metric #7 / V415 / T-400
- Pneumatic multi-directional work clamp
- Automatic heavy-thread trimming
- CNC touchscreen pattern programming
- Visual pattern editing
- Storage for up to 2,000 patterns
- Maximum sewn thickness of 22 mm
- Strong needle penetration for heavy materials
- Comprehensive spare parts package
- Technical support for long-term serviceability
Ordering Information
Price: $15,950.00 + shipping
The 71008G is a specialized heavy-duty programmable machine and is available by special order. Contact HighTex for ordering assistance and an estimated lead time.
Contact to Order: +1 (626) 702-6369
Important: Because this is specialized automatic equipment, lead times can vary. Contact customer service for current availability and estimated delivery time.
