Description

Product Overview

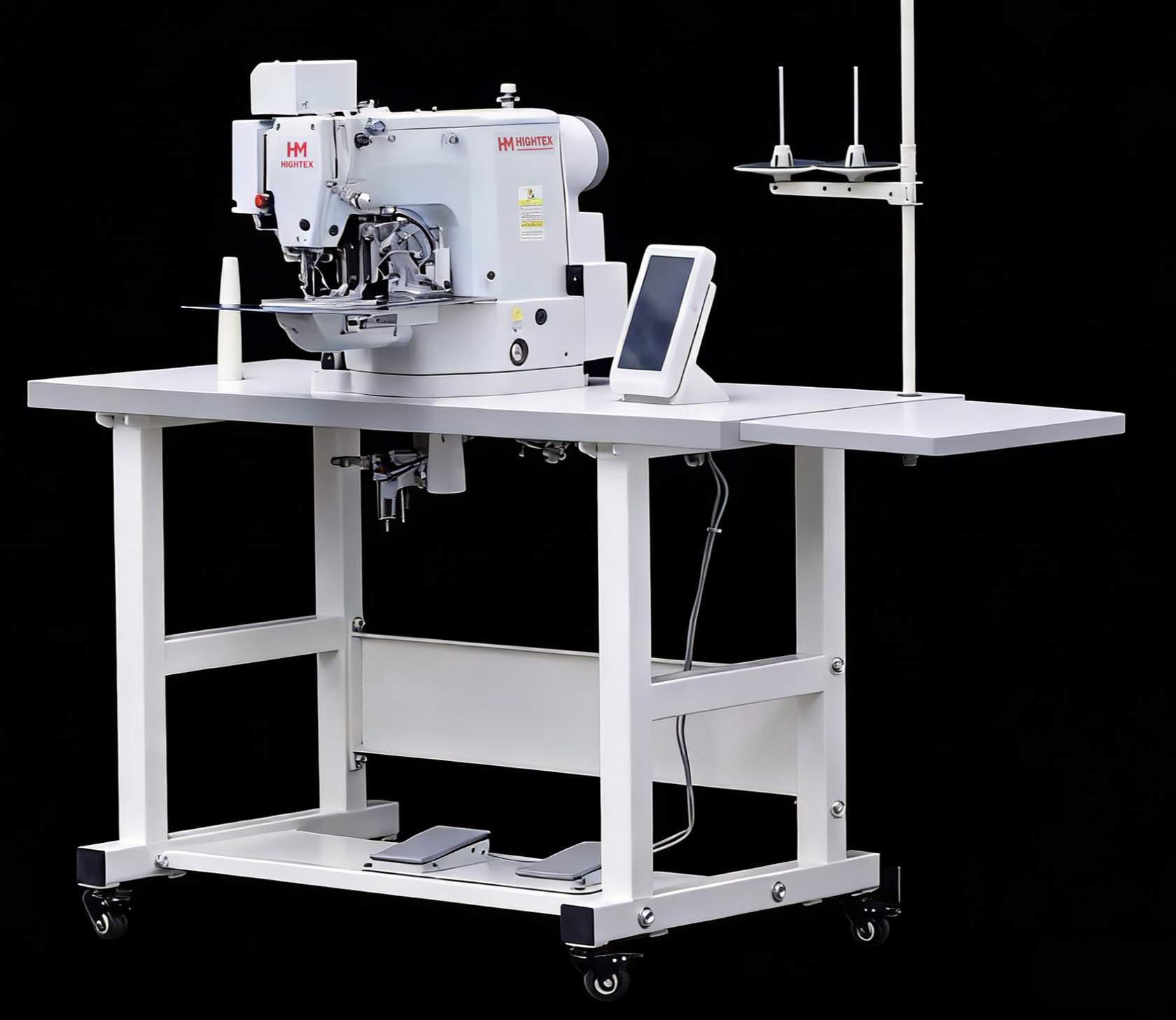

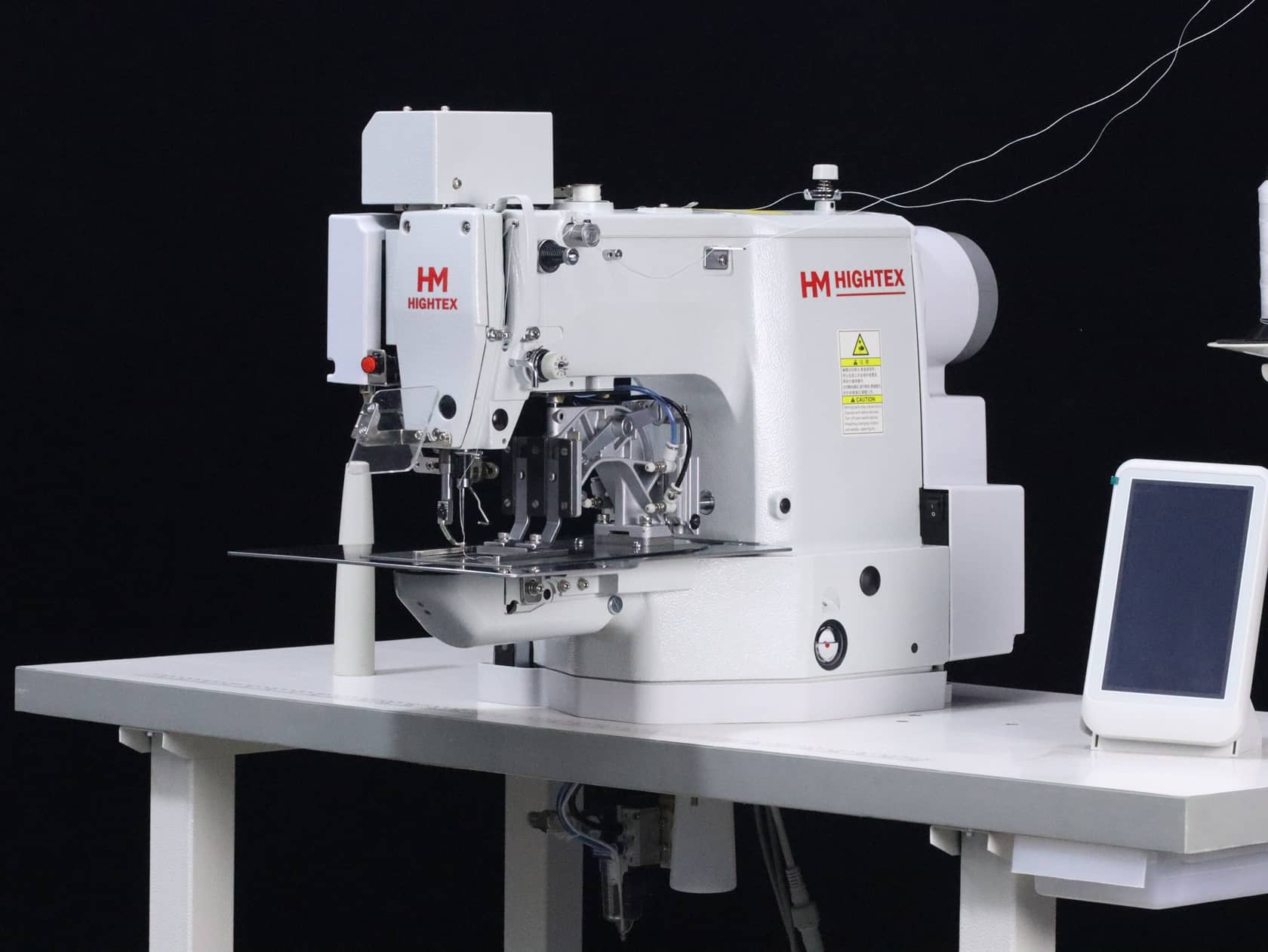

The HighTex 680HM is a specialized electronic bar-tacking machine designed for manufacturers who need fast, repeatable reinforcement stitching on webbing, leather, canvas, denim and other medium-to-heavy materials.

Its compact 60 × 80mm sewing field is large enough for a wide range of common reinforcement patterns, including Box-X stitching, making it particularly suitable for harnesses, seat belts, tactical equipment, collars and lanyards.

One of the machine’s defining features is its factory-installed large hook and bobbin system. Compared with standard bar-tacker configurations, the increased bobbin capacity allows the 680HM to hold substantially more thread, reducing the frequency of bobbin changes when sewing with heavier thread.

With a maximum sewing speed of 3,000 RPM, automatic thread trimming and programmable electronic controls, the 680HM is designed to reduce cycle times while maintaining repeatable stitch patterns.

---

Key Features

Electronic Bar-Tacking & Pattern Sewing

The 680HM provides automated programmable stitching for reinforcement patterns and bar-tacking applications.

Its compact sewing field makes it particularly appropriate for products where reinforced stitching must be accurately positioned within a relatively small area.

---

60 × 80mm Sewing Area

The machine provides a 60 × 80mm sewing area, suitable for many common harness, strap and webbing reinforcement applications.

This includes Box-X patterns and other programmed bar-tacking configurations.

---

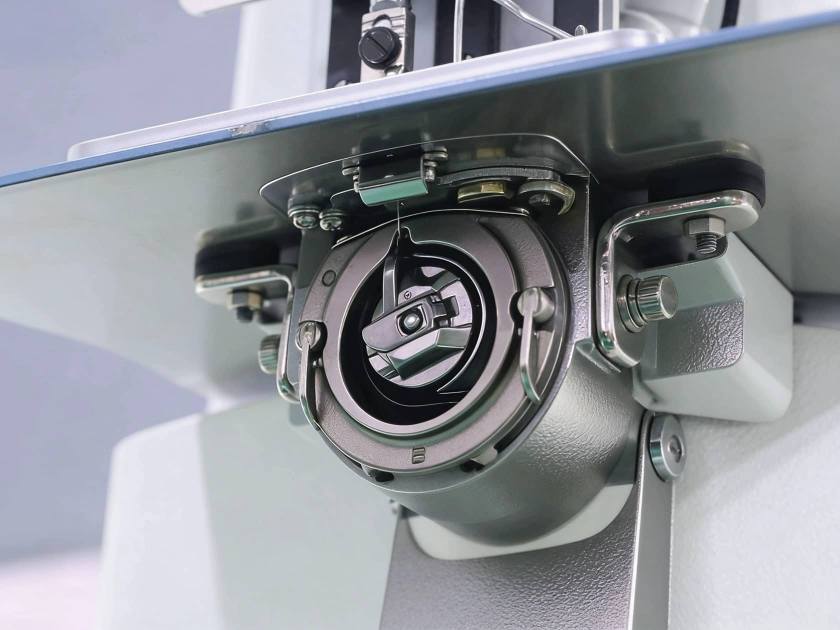

Large-Capacity Hook & Bobbin

The factory-installed large hook and bobbin is one of the 680HM’s major advantages.

Its increased capacity provides substantially more bobbin thread than standard configurations, helping reduce interruptions caused by frequent bobbin replacement.

This is especially useful when working with heavier thread.

---

Heavy Thread Capability

The 680HM can accommodate thread up to:

Metric #15 / V207 / T-210 / 630d×3

This gives the machine the thread capacity needed for reinforced webbing and other demanding applications.

---

3,000 RPM Maximum Speed

With a maximum speed of 3,000 RPM, the 680HM is designed for high-throughput bar-tacking production.

Combined with automatic thread trimming, the high sewing speed helps reduce overall cycle time for repetitive reinforcement operations.

Actual operating speed will depend on the material, thread, pattern and application.

---

Automatic Thread Trimming

The machine incorporates an automatic thread-trimming mechanism designed to reduce manual finishing work at the end of each sewing cycle.

This helps streamline repetitive production and keeps operators focused on loading and positioning the next workpiece.

---

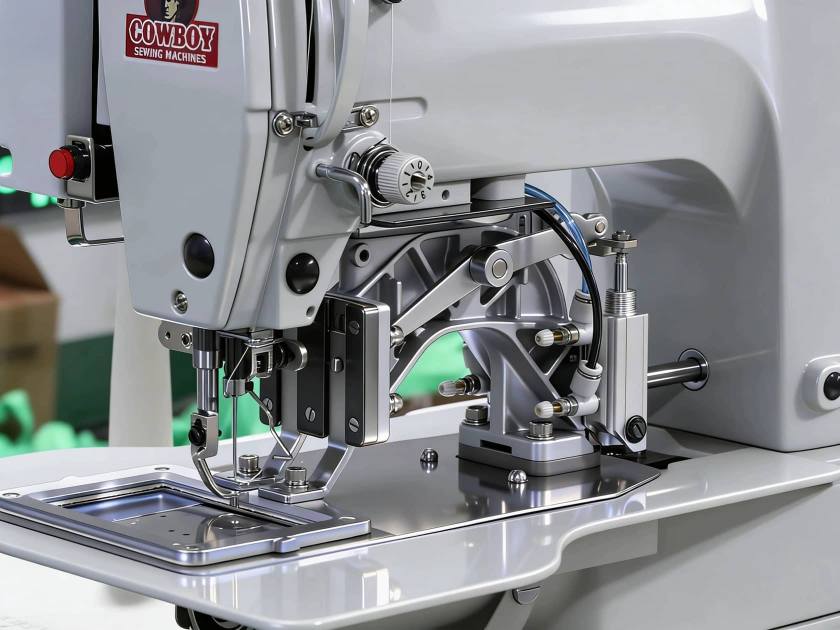

Automatic Presser-Foot Control

The presser-foot control mechanism is designed to maintain consistent thread tightness as material thickness changes.

The stepping presser-foot height can be adjusted automatically according to the material thickness without requiring tools.

This is useful when sewing products containing multiple layers or varying material thicknesses.

---

Touchscreen Programming

The 680HM features an onboard LCD touchscreen control panel with programming and pattern-editing functions.

Operators can create, select and modify sewing patterns directly through the machine’s electronic interface.

---

Needle Thread Grasping Mechanism

The machine includes a needle-thread grasping mechanism designed to help control the thread at the beginning of the sewing cycle.

This supports consistent knot formation and cleaner starts.

---

Long Needle-Bar Stroke

The 680HM’s long needle-bar stroke provides additional capability when sewing medium-weight and tough materials, including leather, canvas and denim.

This makes the machine more versatile than a bar-tacker limited primarily to lightweight webbing.

---

Applications

The HighTex 680HM is particularly suited for:

• Safety harnesses
• Seat belts
• Tactical gear
• Dog collars
• Lanyards
• Heavy-duty webbing
• Reinforced straps
• Leather reinforcement
• Canvas products
• Denim
• Industrial textile components
• Box-X stitching
• Bar-tacking applications

---

Technical Specifications

---

Designed for Harness & Webbing Reinforcement

The 680HM’s compact sewing field makes it particularly effective for localized reinforcement stitching.

Products such as safety harnesses, seat belts, tactical equipment and lanyards frequently require strong bar-tacked or Box-X reinforced areas rather than large continuous sewing patterns.

The 680HM is designed specifically for these applications, giving manufacturers programmable control over the reinforcement pattern while maintaining high production speed.

---

Big Bobbin Capacity for More Efficient Production

One of the most useful features of the 680HM is something that can easily be overlooked: bobbin capacity.

When sewing reinforced webbing with heavier thread, a conventional small bobbin can require frequent replacement. The 680HM’s factory-installed large-capacity hook and bobbin significantly increases the amount of thread available per bobbin.

That means:

More thread per bobbin → fewer bobbin changes → fewer interruptions → more efficient production

This is particularly valuable in repetitive, high-volume bar-tacking operations.

---

Fast Automated Production

The combination of 3,000 RPM maximum sewing speed, programmable patterns and automatic thread trimming makes the 680HM well suited to production environments where the same reinforcement operation must be repeated many times.

The operator can focus primarily on positioning the workpiece and managing the production flow while the machine performs the programmed sewing cycle.

---

Precision Through Electronic Pattern Control

The onboard touchscreen allows operators to work with programmable patterns rather than relying solely on manually controlled bar-tacking.

With storage for up to 2,000 patterns, manufacturers can maintain multiple production programs for different harnesses, belts, straps, collars and other products.

This makes the 680HM a practical solution for businesses producing a variety of reinforced products on the same machine.

---

Why Choose the HighTex 680HM?

• Heavy-duty electronic bar-tacker
• Designed for Box-X and reinforcement patterns
• 60 × 80mm sewing area
• Up to 3,000 RPM
• Large-capacity factory-installed hook and bobbin
• Handles thread up to Metric #15 / V207 / T-210
• Automatic thread trimming
• Touchscreen programming
• Pattern editing capability
• Up to 2,000 stored patterns
• Automatic presser-foot control
• Needle-thread grasping mechanism
• Long needle-bar stroke
• Suitable for leather, canvas and denim
• Maximum sewn thickness of 10mm
• Ideal for harness, seat belt and webbing applications
• 750W motor

---

Where the 680HM Fits in the HighTex Range

The 680HM fills an important position within the Automatic & Programmable category.

It is not intended to compete with the WEB911-7X, which is a complete automated lifting-sling production system, or the 733PLC, which is designed for extreme materials and very heavy thread.

Instead, the 680HM is the compact, high-speed reinforcement specialist.

680HM → Bar-tacking, Box-X & localized reinforcement

ASM911 → General heavy-duty programmable pattern sewing

BAS-311H → Precision leather, automotive & webbing patterns

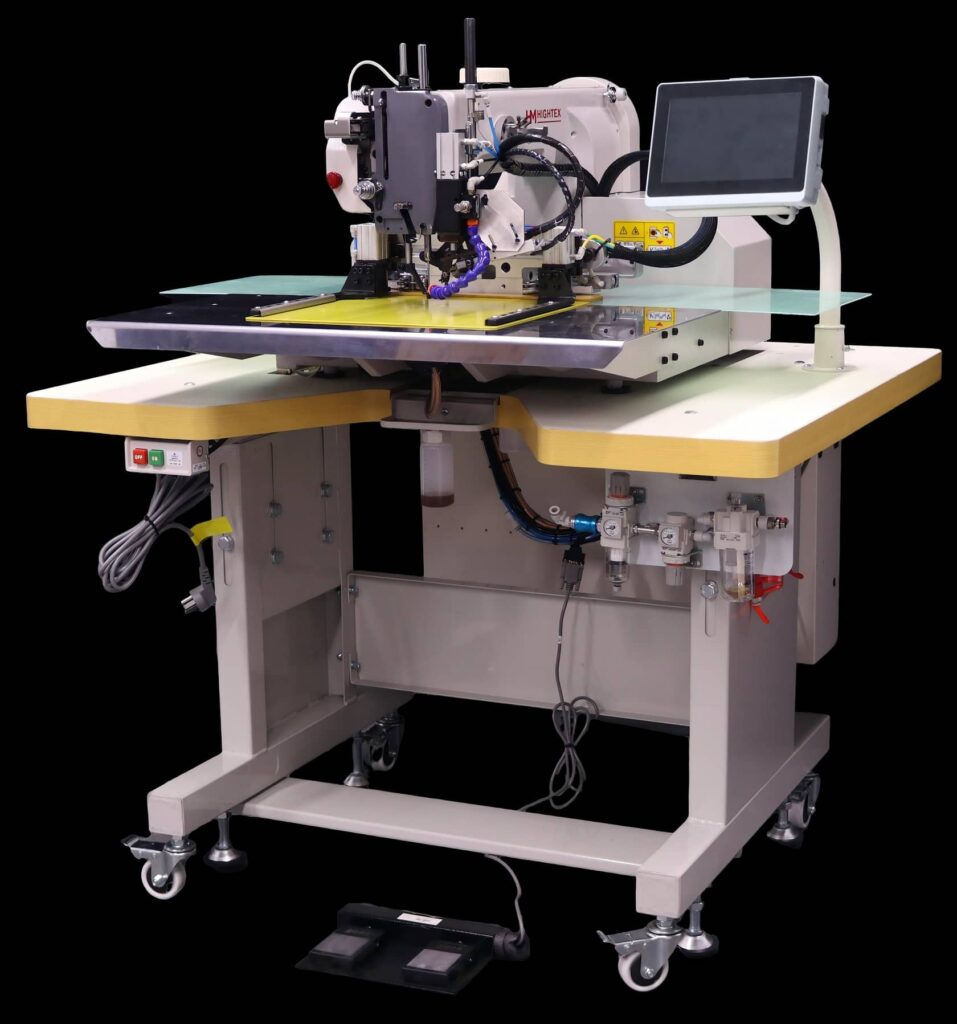

7273CNC → Large-format heavy webbing patterns

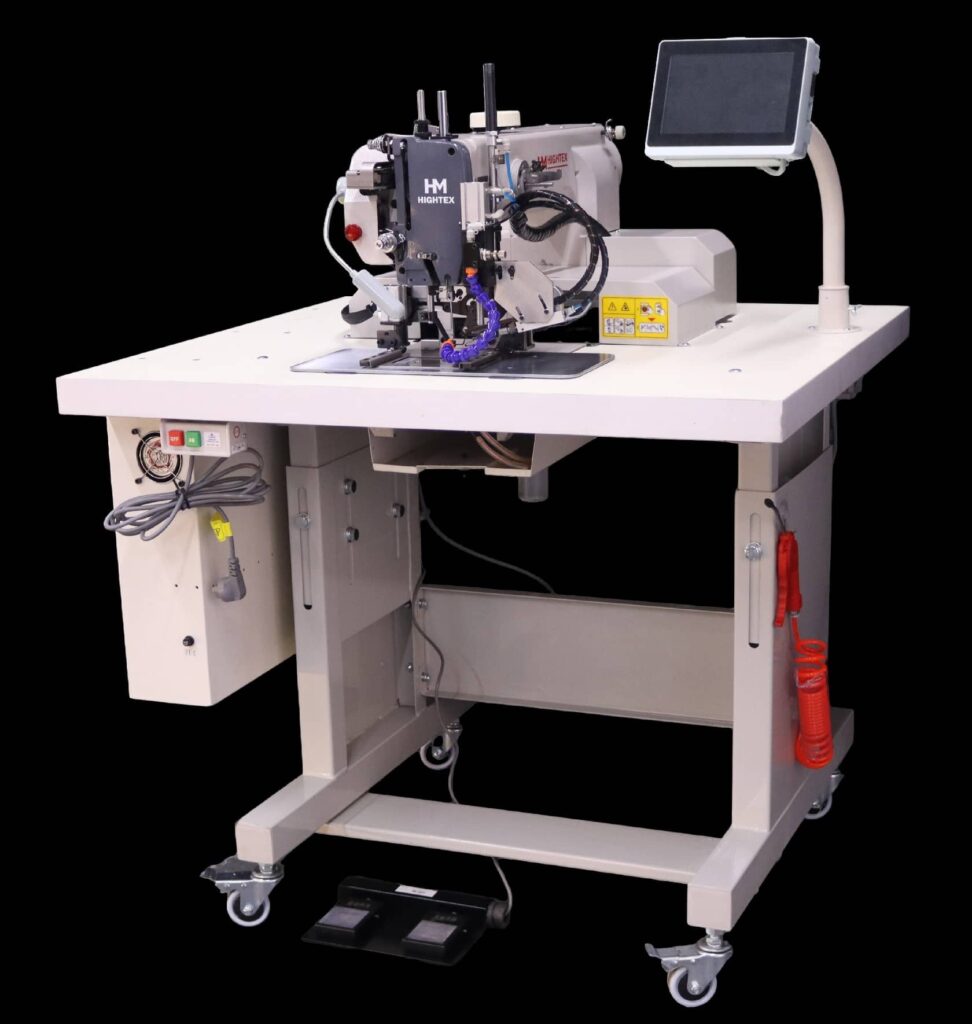

7273PLK → Automated harness/webbing pattern sewing with hot-knife cutting

71008R / 71008G → Specialized rope & harness bar-tacking

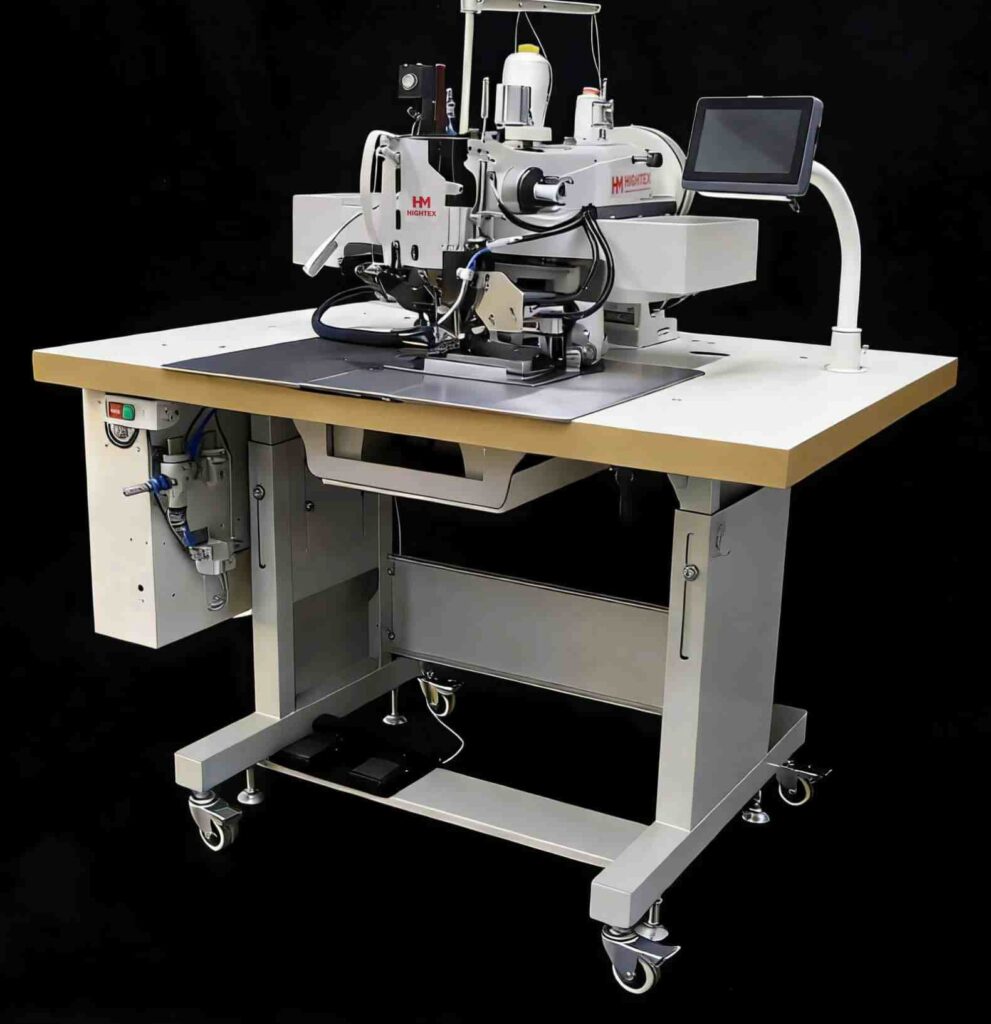

733PLC → Extreme heavy-material programmable sewing

WEB911-7X → Fully automated lifting-sling production

---

Ordering Information

Price: $12,950.00 + shipping

The HighTex 680HM is available by special order. Contact HighTex to discuss your application, material and thread requirements and obtain an estimated lead time.

Contact to Order: +1 (626) 702-6369
