Description

Product Overview

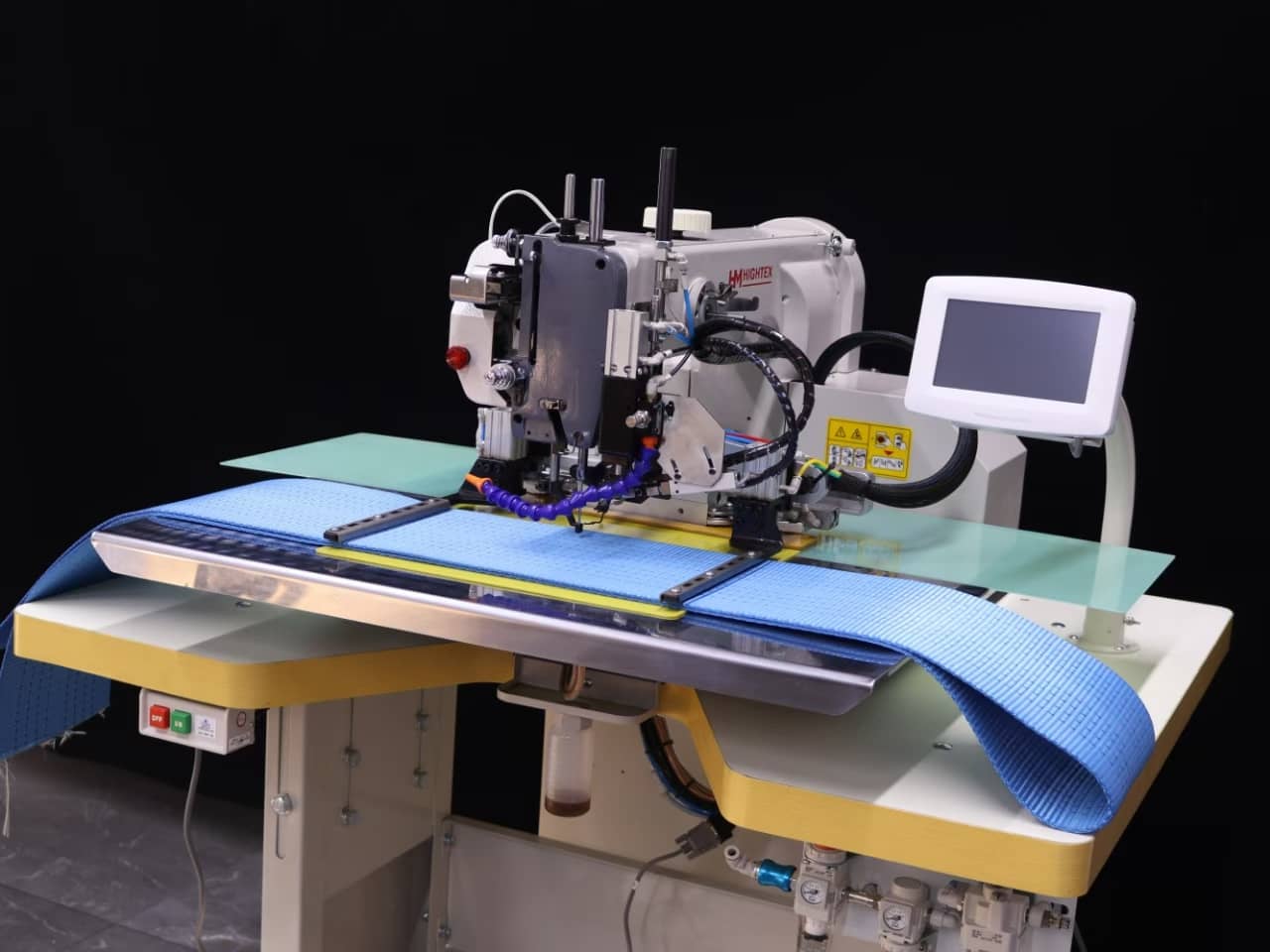

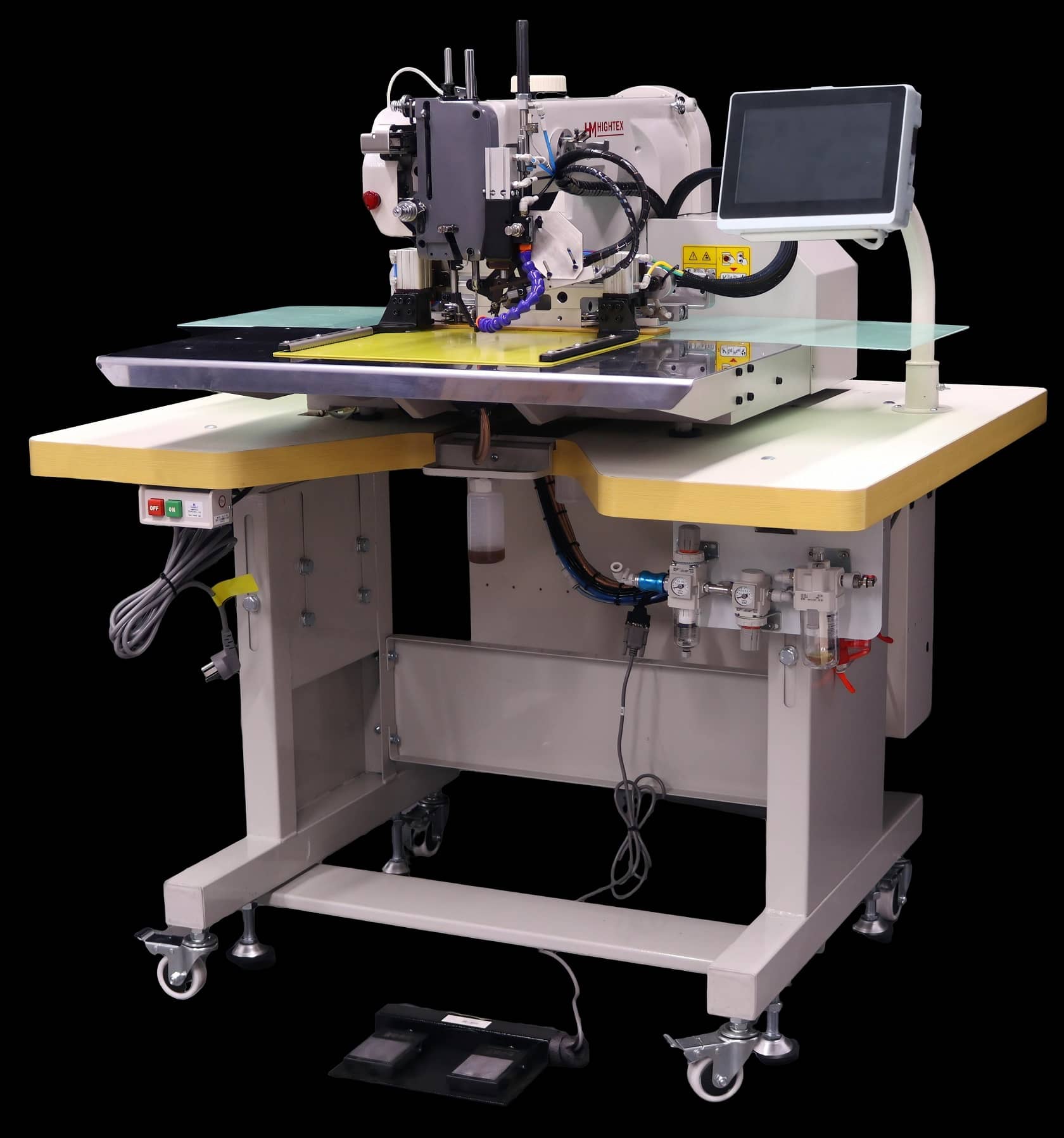

The HighTex 7273CNC is engineered specifically for manufacturers who need to automate repetitive, high-strength sewing operations on heavy-duty webbing and reinforced safety products.

Unlike a conventional industrial sewing machine, the 7273CNC is built around programmable pattern sewing. This allows manufacturers to create and reproduce precise stitch patterns consistently across lifting slings, cargo straps, safety harnesses and other reinforced webbing assemblies.

Its spacious 300 × 200mm sewing area provides substantial room for larger pattern configurations, while the machine’s heavy-duty construction and strong needle penetration allow it to handle sewn thicknesses of up to 20mm.

A major feature of the 7273CNC is its automatic upper and lower hot-knife thread cutting system. The heat-cutting mechanism is designed to cut heavy polyester and nylon sewing thread cleanly while helping prevent fraying at the thread ends. This reduces manual finishing work and helps create a more consistent production process.

The machine also incorporates a high-rigidity double-shaft feeding system, providing controlled material movement and precise positioning during pattern sewing. Combined with the pneumatic system and custom fixtures, this helps produce accurate, consistently formed stitches on demanding materials.

---

Key Features

Heavy-Duty Electronic Programmable Pattern Sewing

The 7273CNC is designed for automated production where the same reinforced sewing patterns need to be reproduced accurately across multiple products.

Its electronic programmable control allows operators to create, save and recall sewing patterns directly through the touchscreen interface.

Large 300 × 200mm Sewing Area

The generous 300 × 200mm sewing area provides room for larger webbing assemblies and complex reinforced stitch patterns.

This makes the machine particularly suitable for industrial products such as lifting slings, cargo lashing straps and safety harness components.

Automatic Upper & Lower Hot-Knife Thread Cutter

The integrated upper and lower heat thread-cutting system is designed specifically for heavy industrial polyester and nylon thread.

The hot-knife process helps:

• Cut thick thread automatically
• Reduce thread fraying
• Improve seam finishing
• Reduce manual thread trimming
• Streamline repetitive production

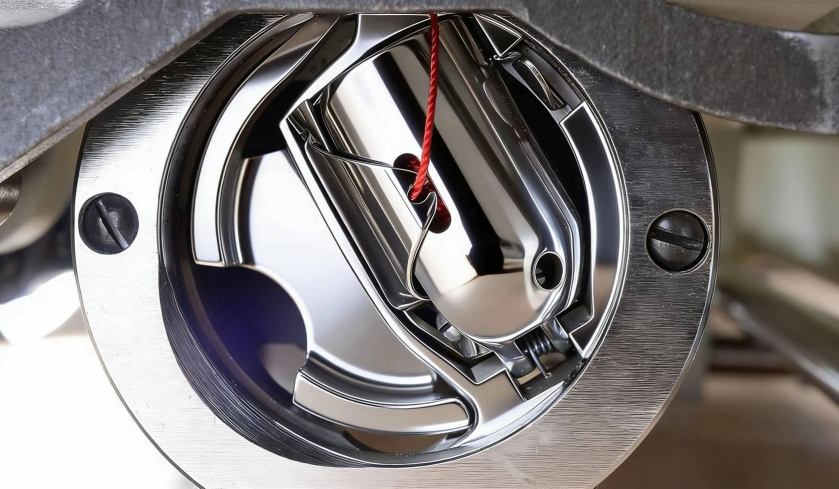

Large Barrel Shuttle Hook

The large barrel shuttle hook is engineered for sewing very heavy materials with thick thread, providing the thread-handling capacity required for demanding webbing applications.

Extra-Large Bobbin Capacity

The 7/8″ × 1″ large-capacity bobbin allows longer sewing periods between bobbin changes.

The machine supports thread sizes up to:

Metric #7 / V415 / T-400 / 1300d×3

High-Rigidity Double-Shaft Feeding System

The high-rigidity feeding system uses double shafts to provide controlled and accurate material movement.

For programmable pattern sewing, precise feeding is especially important because small positioning errors can affect the final stitch pattern. The rigid feeding mechanism is designed to maintain accurate movement throughout the sewing cycle.

Strong Needle Penetration

The 7273CNC combines a heavy-duty sewing mechanism with strong needle penetration to handle thick webbing and reinforced materials.

Pneumatic Sewing System

An advanced pneumatic system works with the machine’s feeding and custom fixture arrangement to provide controlled sewing and consistent stitch formation.

Touchscreen Pattern Programming

Pattern input is performed through an intuitive touchscreen control system, making it easier for operators to create and manage production patterns.

Up to 2,000 Patterns

The electronic control system can store up to 2,000 sewing patterns, giving manufacturers the ability to maintain a large library of production programs.

Quick-Change Clamping System

The quick-change clamping system allows manufacturers to change fixtures for different applications, helping the same machine accommodate a variety of heavy-duty webbing products.

This provides flexibility when moving between:

• Lifting slings
• Cargo lashing straps
• Safety harnesses
• Fall protection equipment
• Other reinforced webbing products

---

Applications

The HighTex 7273CNC is designed for automated sewing of:

• Webbing lifting slings
• Cargo lashing straps
• Safety harnesses
• Fall protection equipment
• Heavy-duty webbing assemblies
• Industrial safety straps
• Reinforced textile products
• Heavy-duty belt and strap components
• Other programmable webbing applications

---

Technical Specifications

---

Built for Heavy Webbing Production

The 7273CNC is particularly well suited to manufacturers producing lifting slings, cargo straps and safety harnesses where consistent stitch patterns must be repeated across large production runs.

The machine’s combination of a large sewing area, heavy-duty needle system and programmable electronic control allows production teams to automate reinforced stitch patterns rather than relying entirely on manual sewing.

The result is a workflow designed around repeatability, controlled positioning and reduced manual intervention.

---

Automatic Heat Cutting for Cleaner Finishing

Heavy-duty webbing products often use substantial polyester or nylon thread. Cutting this thread manually after every sewing cycle can add significant labor to repetitive production.

The 7273CNC addresses this with its automatic upper and lower hot-knife thread-cutting system.

By integrating thread cutting into the automated sewing cycle, the machine can reduce manual thread-finishing operations while helping prevent the cut ends from excessive fraying.

This is particularly useful for high-volume production environments where finishing time can become a significant part of overall cycle time.

---

Flexible Production With Quick-Change Clamping

Different webbing products require different workholding arrangements. The 7273CNC’s quick-change clamping system allows production setups to be changed for different applications.

This makes it possible to use one programmable platform across product lines such as:

Lifting slings → Cargo lashing straps → Safety harnesses → Fall protection equipment

That flexibility can be especially valuable for manufacturers producing several types of heavy-duty webbing products.

---

Production Efficiency

The 7273CNC is designed to reduce the amount of manual intervention required during repetitive pattern sewing.

Its automated workflow combines:

Programmable pattern control
→ Rigid double-shaft feeding
→ Pneumatic workholding
→ Heavy-duty sewing
→ Automatic upper/lower thread cutting

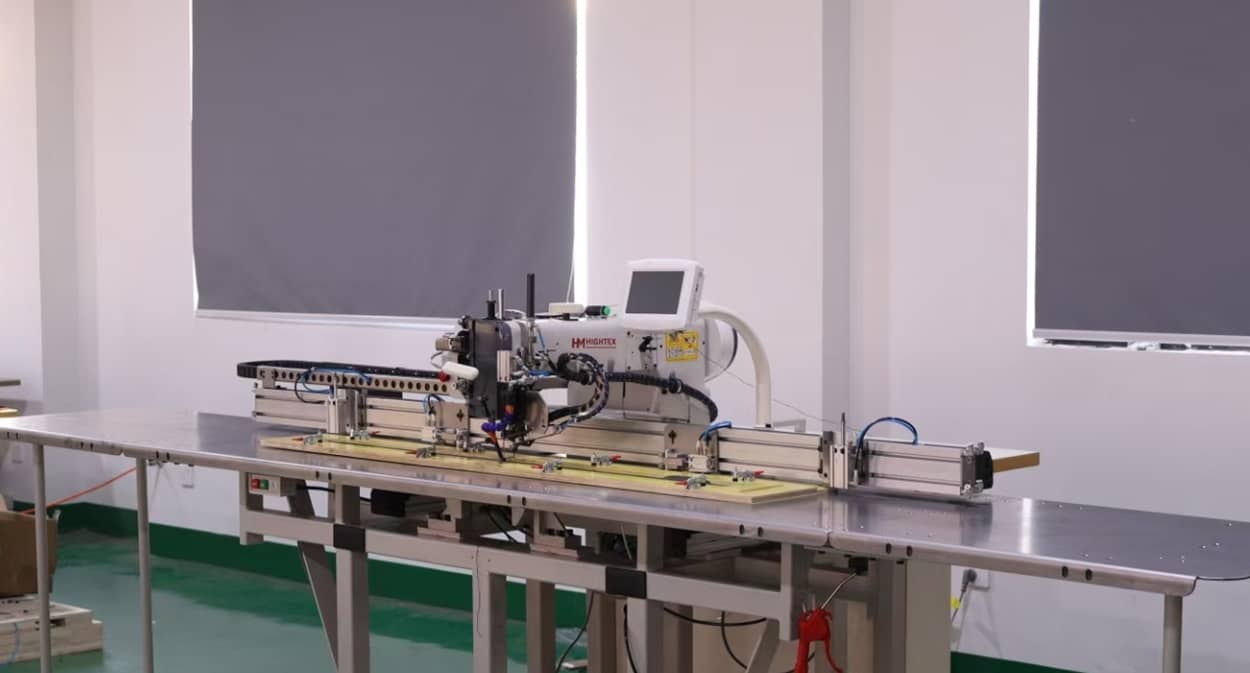

The source information also notes that one operator can manage two automated units simultaneously, potentially allowing a production operation to improve machine utilization and reduce labor requirements. Actual staffing efficiency will depend on the product, pattern, cycle time and production workflow.

---

Why Choose the HighTex 7273CNC?

• Extra-heavy-duty programmable pattern sewing
• Designed for heavy webbing applications
• 300 × 200mm sewing area
• Up to 20mm sewn thickness
• Automatic upper and lower hot-knife thread cutting
• High-rigidity double-shaft feeding
• Large barrel shuttle hook
• Large-capacity bobbin
• Handles thread up to Metric #7 / V415 / T-400
• Touchscreen pattern programming
• Up to 2,000 stored patterns
• Quick-change clamping system
• Suitable for lifting slings and cargo straps
• Suitable for safety harness and fall protection production
• Strong needle penetration
• 1000W motor
• Comprehensive spare-parts package
• Designed for automated, repeatable production

---

7273CNC vs. 7273PLK

---

Ordering Information

Price: $19,950.00 + shipping

The HighTex 7273CNC is available by special order. Contact HighTex for current lead time, application requirements and ordering assistance.

Contact to Order: +16267026369
